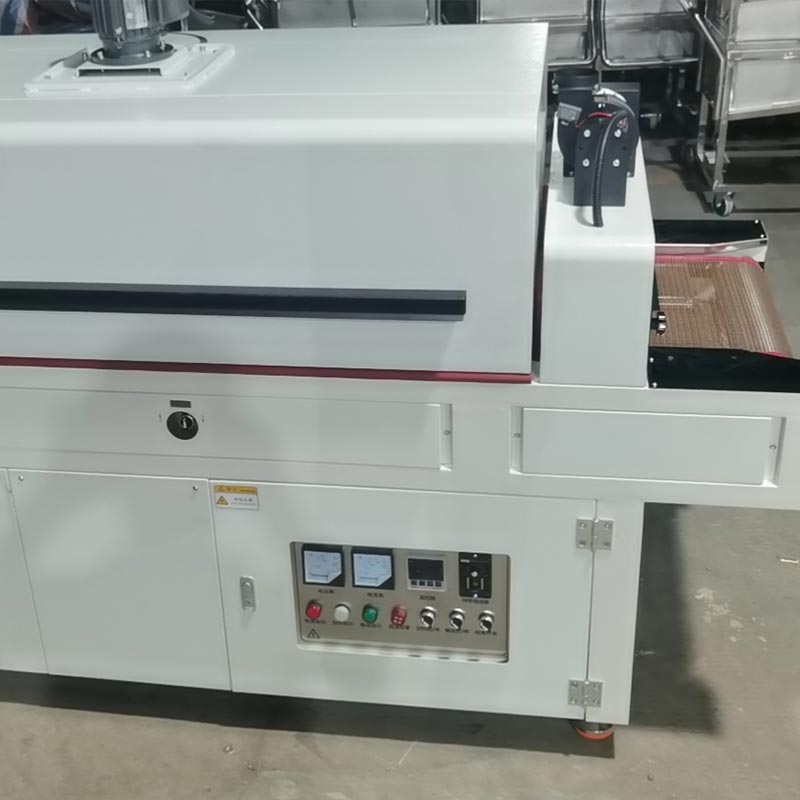

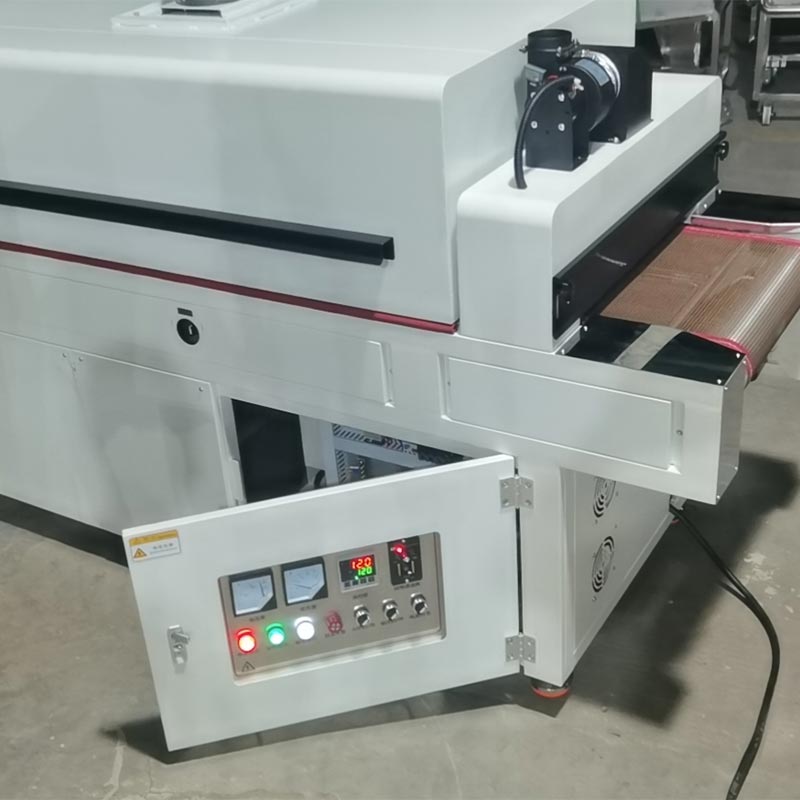

Industrial Teflon Mesh Belt Tunnel Oven

The advantage of Dingfeng's Industrial Teflon Mesh Belt Tunnel Oven lies in its high-load and zero-deviation transportation system. You can obtain a quotation from us. The 1400 mm wide high-temperature Teflon perforated mesh belt conveyor is equipped with integrated anti-slip guide strips, ensuring straight-line operation even at a high speed of 10 meters per minute. Driven by a 2.2 kW high-torque gear motor, this conveyor belt can withstand a maximum load of up to 600 kilograms without any mechanical jitter. To prevent contamination at the feeding point, we have also integrated an elastic fitting adhesive roller device, which can perform real-time dust removal to ensure that fine particles do not affect your 18-meter sterile heating chamber.

Quality and Standards

To meet the standards of a cleanroom in large furnaces, complex fluid dynamics technologies are required. Dingfeng Industrial Teflon Mesh Belt Tunnel Oven adopts our independently developed high static pressure diffuser and low-noise impeller to form a pressurized internal chamber. Each heating area is equipped with a 1000-level high-efficiency filter, which evenly disperses the purified air onto the product surface. The under-suction design maintains the purity of the air and can better stabilize lightweight substrates, preventing shaking during transportation. The system is controlled by Xijie PLC and SCR modules. The 8-region system adjusts the current with micro-precision, achieving zero overshoot in thermal rise within the range of 0 - 200°C.

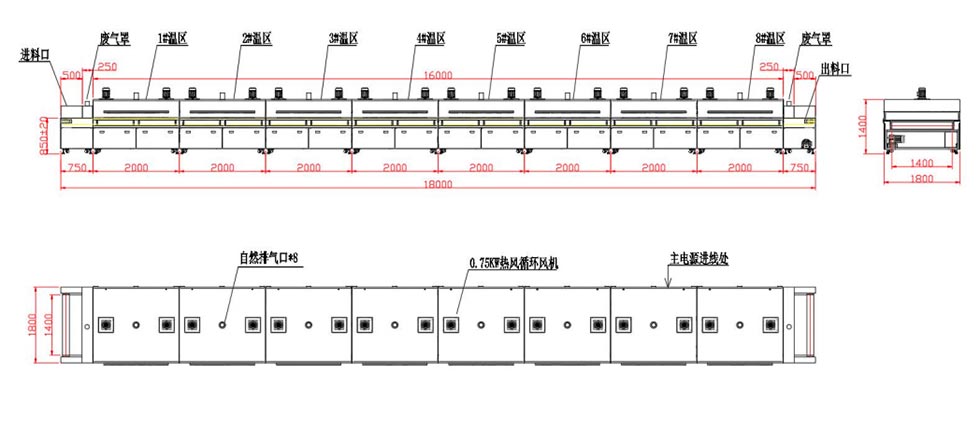

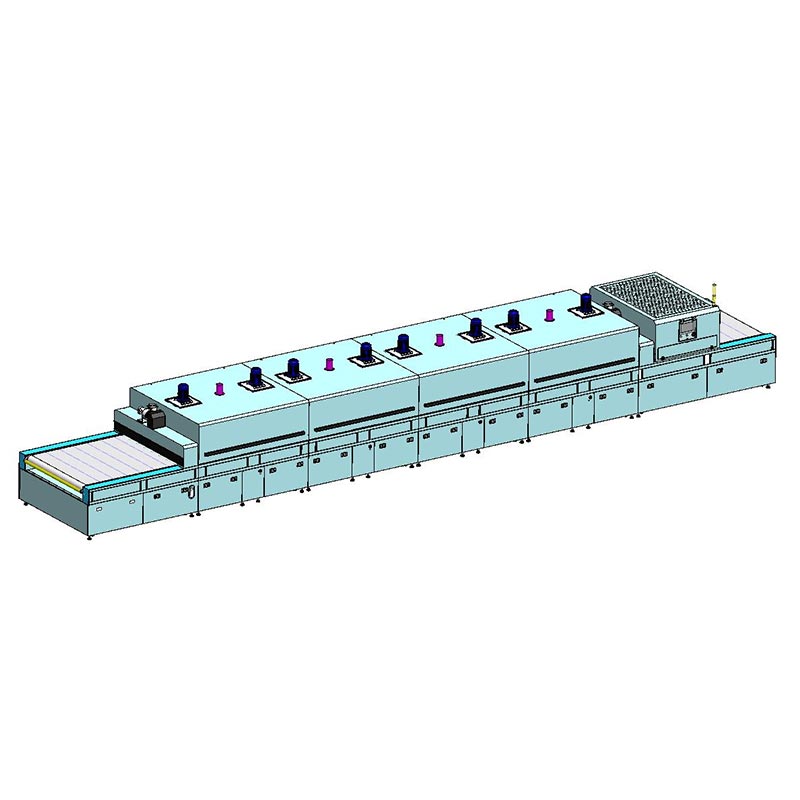

Size display

Procurement Process

The production and delivery cycle of the Industrial Teflon Mesh Belt Tunnel Oven is 30 working days. Our process includes scheme review, drawing design (customizable), cutting and fabrication, and on-site commissioning. Additionally, it requires 3 people to complete the installation, transportation positioning, and operation training on-site. The inner part of the furnace is uniformly made of mirror-finish stainless steel plates, the frame is welded from iron profiles, and the outer panel of the furnace is formed by laser cutting of cold-rolled steel plates and then through hydraulic molding. The insulation layer is filled with silica-alumina insulation rock wool. The equipment uses 304 stainless steel heating tubes. Through our independently developed volute and low-noise multi-blade fan, it achieves heat circulation. The circulating air is blown out from the volute and heated by the heating tubes, forming wind pressure in the equal-pressure box, and then evenly diffused to the product surface through an efficient filter. The entire machine has safety protection functions such as automatic temperature control, constant temperature, and automatic stop at over-temperature. It features safe use, convenient operation, environmental friendliness, and energy saving.

Main technical parameters

FAQ

Q1: How can we prevent the 1400-millimeter-wide belt from deviating within a 18-meter span?

Answer: We use high-quality Teflon belts with vulcanized guide strips, which are embedded in the precisely machined grooves on the drive rollers, forming a mechanical track, thereby preventing lateral movement.

Q2: What are the benefits of the "SCR output" for a 18-meter-long heating system?

Answer: Dingfeng's SCR current control can provide a stable and linear power output across all 8 areas. This can avoid thermal shock and ensure that the temperature fluctuation remains within ±0.5°C, thereby improving bonding strength and material stability.

Q3: Can the 18-meter-long furnace be disassembled for easier relocation in the workshop?

Answer: Yes. The Dingfeng Non-stick Conveyor Oven adopts a modular assembly structure. The entire 18-meter production line is divided into multiple parts, which can be quickly disassembled and reassembled.
