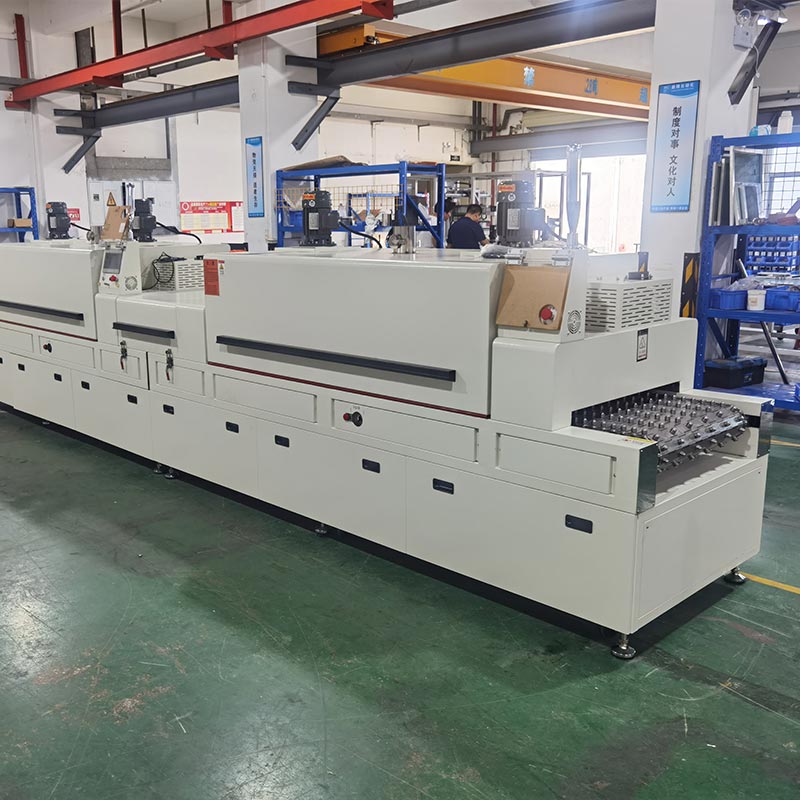

Stainless Steel Mesh Belt Tunnel Oven

For high-quality spraying and semiconductor packaging, dust is the biggest enemy. Dingfeng's durable Stainless Steel Mesh Belt Tunnel Oven comes with a 1-year warranty. The system integrates a specialized down-suction hot air circulation system and is equipped with a 1000-level high-efficiency air filter. Every cubic inch of air is purified before spreading onto the product surface. It is driven by a 36-kilowatt power array and SCR output, with temperature fluctuations of only ±0.5°C, ensuring that the plastic resin and coating can be perfectly cured without yellowing or structural deformation.

Operating Configuration

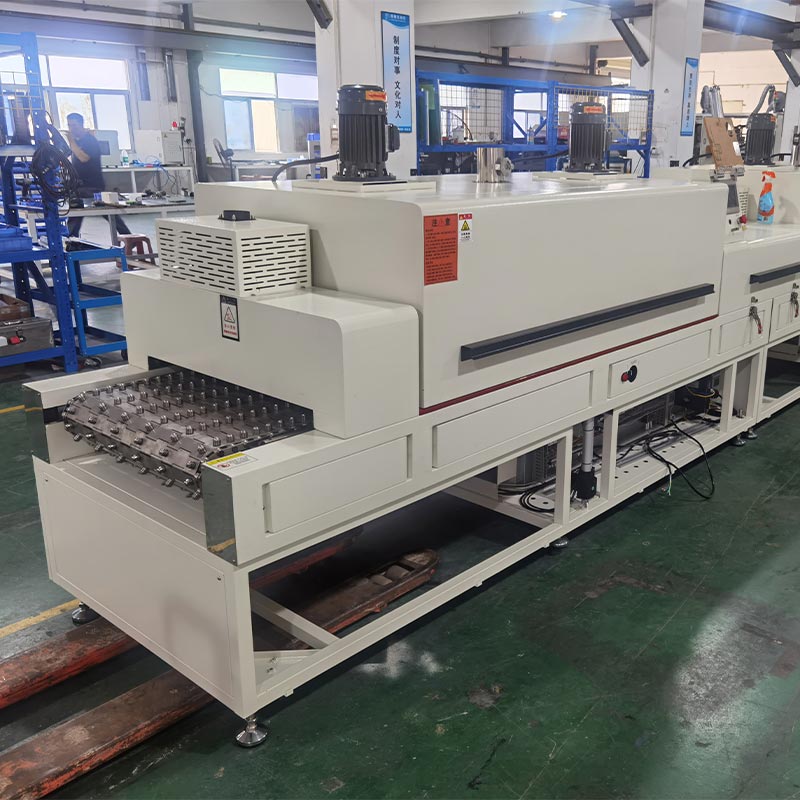

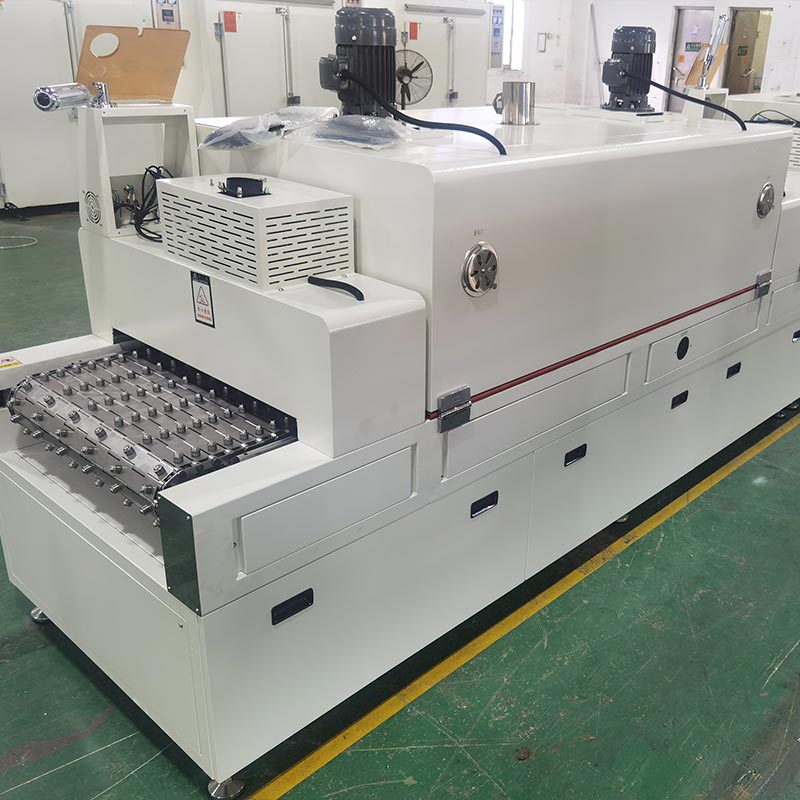

Our Stainless Steel Mesh Belt Tunnel Oven can handle up to 65 kilograms of goods. Its 660-millimeter-wide conveyor belt is divided into five 102-millimeter-wide channels, each of which is equipped with stainless steel partition pins to prevent product movement. It is driven by a Schliner frequency converter and high-torque gear motors, capable of providing an ultra-stable speed range of 0.05 to 0.2 meters per minute. This enables it to operate at an exact baking cycle of 1 hour per hour, producing 5 products every 240 seconds, perfectly aligning with the beat time of modern automated production lines.

Main technical parameters

Our after-sales service

The Stainless Steel Mesh Belt Tunnel Oven is covered by a 12-month warranty from the date of formal acceptance. During this period, we will be responsible for free repair and maintenance, excluding damages caused by consumables, human factors and force majeure. If there are any equipment quality issues, please contact our after-sales staff. We will conduct an investigation upon receiving the customer's notification and assist the customer in resolving the problem together.

Why choose us?

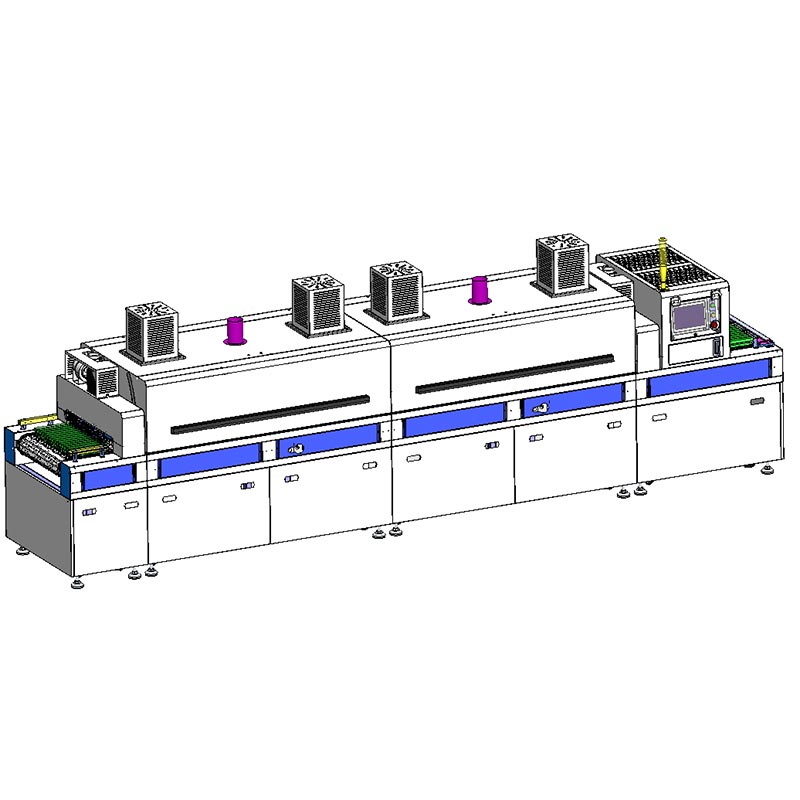

A 6-meter-long High-Temperature Conveyor Oven does not adopt the electric side-opening oven cover design. Instead, it is opened with the help of a high-torque electric push rod. To ensure the safety of the operators, we have also equipped with two mechanical support rods and an interlock emergency stop system, and a protective cover to prevent accidental triggering. Due to the use of high-density insulation materials, the external temperature remains within the range of ≤RT + 15°C. We have reserved sufficient stocks of key components in our 11,000-square-meter factory to ensure that emergency parts can be provided within 48 hours. From custom structural sketches to on-site training, we work hand in hand with you to ensure the normal operation of your long-term production.

Q&A

Q1: What are the benefits of this split pin design on the conveyor belt?

Answer: On the standard mesh conveyor belt, products may slide or overlap, resulting in uneven drying. However, our fixed pins form 5 independent channels, avoiding collisions and ensuring that the hot air from the bottom can cover 100% of the product surface.

Q2: How does the ±0.5°C temperature control protect plastic components?

Answer: Plastic components are very sensitive to thermal overshoot. Even a 5-degree fluctuation can cause deformation. Therefore, using the Delta module and SCR current control eliminates the "on/off" type temperature fluctuations of traditional contactors.

Q3: Can it be integrated into an automatic robot loading line?

Answer: Yes. The Inovance PLC and the stable 0.05 - 0.2 meters/minute speed range are designed to synchronize with the robot arm. The 750 ± 30 mm height is the ergonomic industrial loading standard.
