Dingfeng Automation Unveils Double-Door Industrial Oven: Large Capacity · Uniform Heating·Multi-Layer Safety

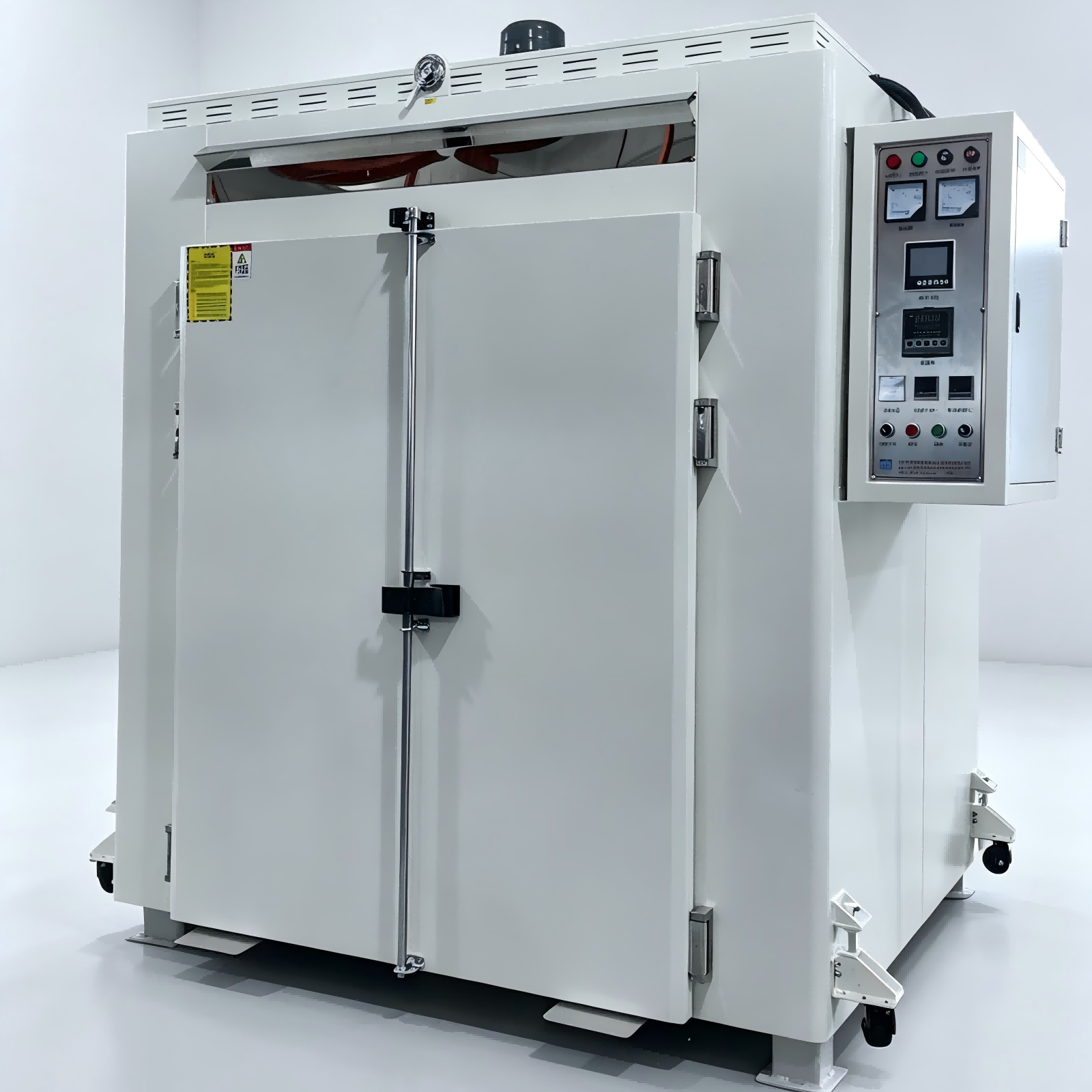

Dongguan Dingfeng Automation Equipment Co., Ltd. introduces the **DF-KX151515 Double-Door Industrial Oven** – designed for high-volume drying in EV, electronics, and metal finishing industries. Now available on the market.

Large Capacity – Higher Throughput

Specification	Detail
Interior Dimensions	1500(W) × 1500(D) × 1500(H) mm
Exterior Dimensions	2200(W) × 1790(D) × 2450(H) mm
Door Type	Double-door + lever-style cabinet locks
Inner Chamber Material	1.0T SUS304 Mirror Stainless Steel
Air Guide Plate	Perforated Stainless Steel
Frame	50×50 Angle Steel, Welded

Key Advantage: Far greater load capacity than standard ovens. Double-door design enables easy access for large workpieces. Robust and durable.

Horizontal Airflow + 12‑inch Impeller – Excellent Uniformity

Uniform temperature is key to baking quality. A 1.5KW long-shaft motor drives a 12-inch multi-blade stainless steel impeller, creating horizontal airflow:

| ⚙️ Air exits from both sides → returns from the top → evenly distributes through air guide plates across all product layers

Parameter	Value
Temperature Range	RT ~ 120°C
Ramp-up Time	≈40 min (RT → 120°C)
Temperature Uniformity	≤ ±5°C (9-point no-load test)
Heating Power	18KW (SUS304 Stainless Steel Heating Tubes)

| Heating elements inside chamber with external terminals – safe and easy maintenance.

Intelligent PID+SCR Control – Easy Operation

The oven features a 16-segment programmable PID controller with SCR thyristor output and auto-tuning:

- ✅ K-type sensor, accuracy **±0.5%**

- ✅ SCR stepless regulation – minimal temperature fluctuation, precise control

- ✅ Timing starts automatically at set temperature; when time expires, heating stops and alarm sounds – no manual monitoring needed

Electrical Control Highlights:

-  Independent side-mounted cabinet with gap from oven body – prevents heat transfer

-  All wiring labeled per standards with circuit diagram included

-  Intake/exhaust cooling fan – extends component life

-  4-inch adjustable stainless steel exhaust damper (with minimum safety stop)

-  High-temp silicone rubber seals (300°C rating) – excellent airtightness

Multi-Layer Safety Protection

Protection Type	Implementation
Leakage Protection	Schneider Circuit Breaker
Dual Over-Temperature Protection	Controller + Independent Mechanical Unit – automatic power cut + audible/visual alarm
Dry-Burn Prevention	Heater-Fan Interlock – heater cannot run without fan
Additional Protection	Phase sequence, overload, air pressure, grounding

Key electrical components from Schneider, Omron, Taisong – proven reliability.

 Fast Delivery & Service

Item	Commitment
Installation & Training	2 persons, 1 day
Warranty	12 months (excluding consumables, misuse, force majeure)
Service Response	72-hour on-site arrival (if phone support fails)
Post-Warranty	Labor + travel costs only; parts at cost
Spare Parts	Critical parts available for 48-hour emergency dispatch

Typical Applications

-  **EV Batteries** – electrode drying, separator drying

-  **Electronics** – PCB baking, chip encapsulation curing

-  **Metal Finishing** – powder coating curing, paint drying

-  **Automotive Parts** – weatherstrip vulcanization, coating drying

For more technical details or to schedule a test run, please visit Dingfeng Automation's official website or contact our sales team directly.
