Dingfeng Automation Unveils Vertical Dual-Station Oven: Dual-Chamber Parallel Operation · High-Efficiency Drying · Precision Temperature Control

Dingfeng Automation Launches Vertical Dual-Station Oven: Parallel Chambers · High Efficiency · Precision Control

| Dual independent stations | 5HP high-pressure blower with vertical airflow | RT→200°C in just 30 minutes

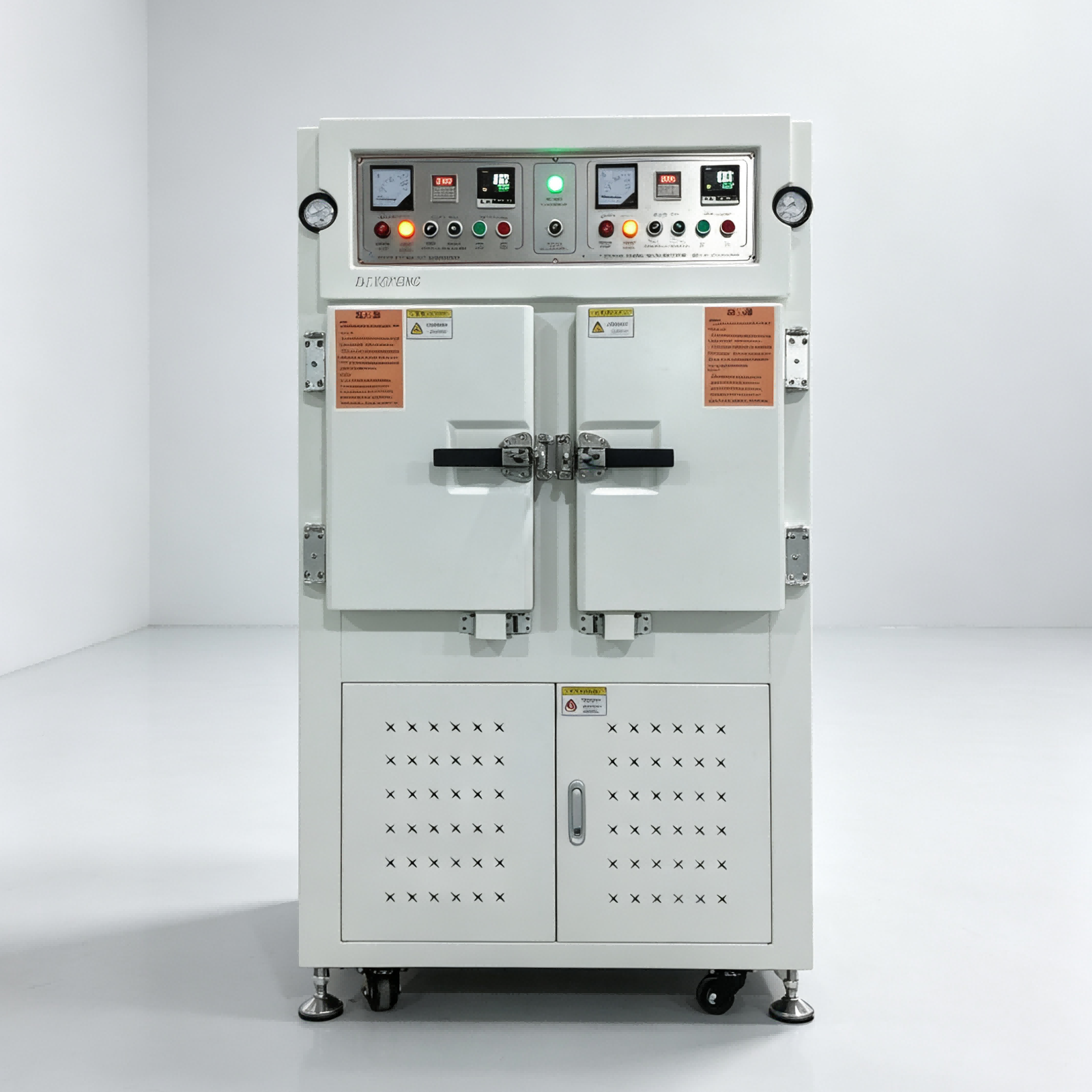

Dongguan Dingfeng Automation Equipment Co., Ltd. introduces the "DF-KX303247 Vertical Dual-Station Oven" – designed for precision high-temperature drying in semiconductor, EV, and electronics industries. Now available on the market.

🏗️ Dual-Station Design – Double the Throughput

Traditional single-station ovens face a fundamental problem: during baking, loading/unloading is impossible – the equipment sits idle while operators wait. The DF-KX303247 delivers a smart solution: "two independent stations" that can operate simultaneously or alternately.

Key Advantage:While one station is in the baking cycle, the other can be loaded or unloaded simultaneously. "No downtime between cycles" – significantly higher throughput per unit time, with a smaller footprint.

🌪️ 5HP High-Pressure Blower + Vertical Airflow – Superior Uniformity

Uniform temperature distribution is the cornerstone of baking quality. The DF-KX303247 features a "5HP high-temperature high-pressure blower" with "vertical airflow" design – hot air flows from top to bottom throughout the chamber, ensuring even heating across every layer of products.

Temperature Specifications:

--🔥 Heating elements inside chamber with external terminals – safe and easy maintenance. Long service life, high thermal efficiency, oxidation-resistant.

The fresh air intake is equipped with a "primary+medium efficiency filter" to remove airborne particles, ensuring chamber cleanliness. A built-in "air pressure gauge" allows real-time monitoring of airflow status, ensuring stable and reliable hot air circulation.

🧠 SSR + PID Intelligent Control – Precision and Peace of Mind

The oven features an "Omron PID controller" with "Solid State Relay (SSR)" output and built-in auto-tuning:

- ✅ K-type thermocouple, accuracy "±0.5%"

- ✅ SSR provides contactless switching – no mechanical wear, fast response, precise control

- ✅ "Timing starts automatically at set temperature; when time expires, heating stops and alarm sounds" – no manual monitoring needed

Electrical Control Highlights:

- 📦 Intake/exhaust cooling fan for the control cabinet

- 📋 All wiring labeled per standards with circuit diagram included

- 🔌 Main power: 380V, 3-phase, 5-wire; control circuit: DC24V safe voltage

- 🌀 1.5-inch adjustable stainless steel exhaust damper (with minimum safety stop) – can connect to factory acid exhaust system

- 🧵 High-temperature silicone rubber seals (rated 320°C) – excellent airtightness

- 💧 Drain port with pneumatic valve at chamber bottom for easy cleaning

🛡️ Multi-Layer Safety Protection

--🔒 "Explosion-proof lock + Electromagnetic lock" dual security – doors automatically lock during operation, preventing accidental opening that could cause burns or process interruption.

Key electrical components from "CHINT, Omron" – proven reliability.

 📦 Fast Delivery & Service

🏭 Typical Applications

- 🔬 Semiconductor / Chip Packaging – wafer baking, encapsulation curing

- 🔋  EV Batteries – electrode drying, separator drying

- 📟 Electronics – PCB baking, LED encapsulation curing

- 🧪 Optoelectronics / LCD – panel drying, adhesive curing

- 🏭 Metal / Plastic – powder coating curing, plastic drying

For more technical details or to schedule a test run, please visit Dingfeng Automation's official website or contact our sales team directly.
