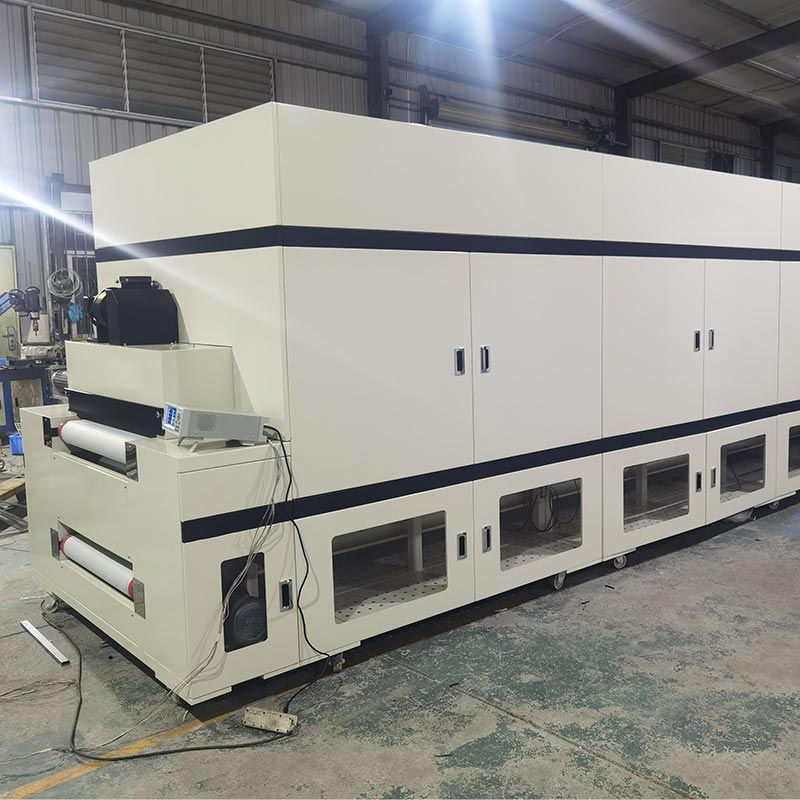

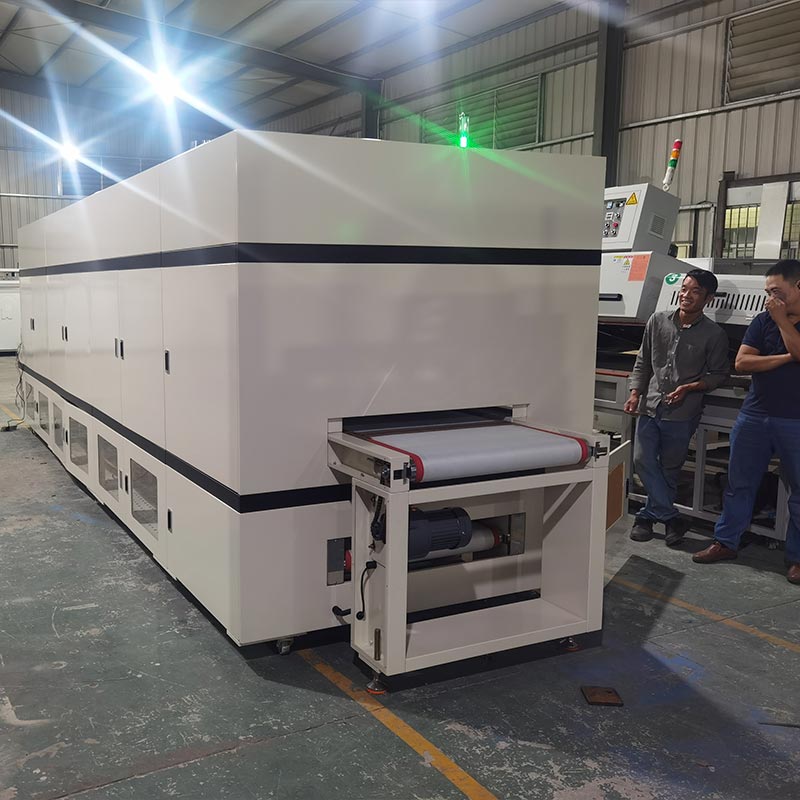

Dingfeng DFHK7008's 8m Class 100 Tunnel Oven Factory Direct adopts a unique under-suction hot air circulation technology. Electrical energy is converted into thermal energy through advanced stainless steel components, and then is pressurized by low-noise circulating fans through a 100-level high-efficiency air filter. We have also integrated vacuum carbon fiber infrared lamps, completing the process from RT to 100°C within ≤15 minutes. The Delta DTE-10T temperature module and SCR power regulation can achieve temperature control.
The temperature zones adopt side-opening door design, which is convenient for maintenance and cleaning. Each temperature zone is equipped with adjustable air inlets to facilitate exhaust of waste gas. It integrates comprehensive protection mechanisms such as leakage, phase loss, overload, ultra-low temperature, and one-button emergency stop to ensure the stable operation of the 8-Meter Industrial Tunnel Oven.
| No. | Item | Specification |
| 1 | Model | DFHK7008 |
| 2 | Overall Dimensions | L8000 * W1630 * H2100mm |
| 3 | Power | AC380V 88KW 50Hz |
| 4 | Effective Length of Inlet | 500mm |
| 5 | Zone 1 Length | 1500mm * 1 section |
| 6 | Zone 2 & 3 Length | 2250mm * 2 sections |
| 7 | Cooling Zone Length | 1000mm |
| 8 | Outlet Length | 500mm |
| 9 | Effective Conveyor Width | 700mm |
| 10 | Effective Conveyor Height | 0～80mm adjustable |
| 11 | Conveyor Speed | 0.5～3m/min adjustable |
| 12 | Working Height | 900±30mm |
| 13 | Curing Mode | Hot Air Circulation |
| 14 | Curing Temperature Range | RT～180℃ |
| 15 | Temperature Uniformity | ≤±3℃ |
| 16 | Heating Rate | RT～100℃ ≤ 15min |
| 17 | Oven Surface Temperature | ≤Ambient +8℃ |
| 18 | Production Mode | Continuous uninterrupted production |
| 19 | Heating Element | Stainless steel heating tube / Medium-wave IR lamp |
| 20 | Conveyor Belt | High-temperature resistant Teflon mesh belt |
| 21 | Oven Natural Exhaust | 3 outlets, 4" diameter, ~0.8m³/min each |
| 22 | Oven Waste Gas Exhaust | 2 outlets, 5" diameter, ~9m³/min each |
| 24 | Cooling System | Class 1000 FFU laminar cooling + bottom low-noise centrifugal fan; 23m³/min, 6" diameter, 1 outlet |
| 25 | Total Waste Gas Flow | ~43m³/min |
| 26 | Oven Cleanliness | Static Class 100, Dynamic Class 1000 |
| 27 | Safety Protection | Leakage, overload, over-temperature and emergency stop protection |
| 28 | Data Acquisition | MES data acquisition & automatic scanning function |
| No. | Parts Name | Specification / Model | Brand & Origin |
| Mechanical Part | |||
| 1 | Drive Motor | CH32-400W-120-SZ 380V Horizontal, Output Shaft Ø32 Horizontal | Domestic Brand |
| 2 | Teflon Conveyor Mesh Belt | Circ. Length 16700W750mm, Milky White, 11 Mesh, with Silicone Guide Strip, Guide Strip Center Distance 720mm | Domestic Brand |
| 3 | Hot Air Circulation Fan | 1.5KW-2P, Shaft Length 190, Shaft Diameter Ø24mm, Speed 2800r/min | Domestic Brand |
| 4 | HEPA Filter | L900W274T180mm Class100L900W424T180mm Class100 | Domestic Brand |
| 5 | 304 Stainless Steel Heating Tube | 1.2KW L-Type 220V, 1.5KW L-Type 220V | Domestic Brand |
| 6 | IR Lamp | Carbon Fiber Vacuum IR Tube, 0.8KW*L845mm | Domestic Brand |
| 7 | Inserted Blade Fan Wheel | 10.5 Inch Type B, Shaft Hole Ø24mm | Domestic Brand |
| 8 | Exhaust Gas Fan | CY125 200W 220V, Right 90° | Domestic Brand |
| 9 | Centrifugal Fan | CY180 750W Cast Iron Motor, Speed 2850r/min | Domestic Brand |
| 10 | Differential Pressure Gauge | 0-300Pa | Domestic Brand |
| 11 | Dust Sticky Roller | Length 690mm, OD 94, ID 76, Knife-free Cutting, Medium-High Viscosity | Domestic Brand |
| 12 | Sealing Strip | KX-27(16x21) | Domestic Brand |
| Control Part | |||
| 13 | Earth Leakage Circuit Breaker | 3P+N-C250A | CHINT |
| 14 | AC Contactor | LC1N-1810 220V | Schneider |
| 15 | AC Contactor | LC1N-1210 220V | Schneider |
| 16 | AC Contactor | LC1N-4011 220V | Schneider |
| 17 | Thermal Overload Relay | LRN12N 5.5-8A | Schneider |
| 18 | Intermediate Relay | MY4NJ DC24V | OMRON |
| 19 | PLC | H5U-1614MTD-A8 | Inovance |
| 20 | Touch Screen | MT8102iE | Weinview |
| 21 | Temperature Control Module | DTE-10T | Delta |
| 22 | Temperature Sensor (Thermocouple) | WRNT-01/02 K-Type | Hualing |
| 23 | 3-Phase SCR Module | J3-SCR-75LA | Aoyi |
| 24 | Inverter | 220V 0.4KW, Shihlin, with Communication Function | Shihlin |
| 25 | Inverter | 380V 3.7KW, Shihlin, with Communication Function | Shihlin |

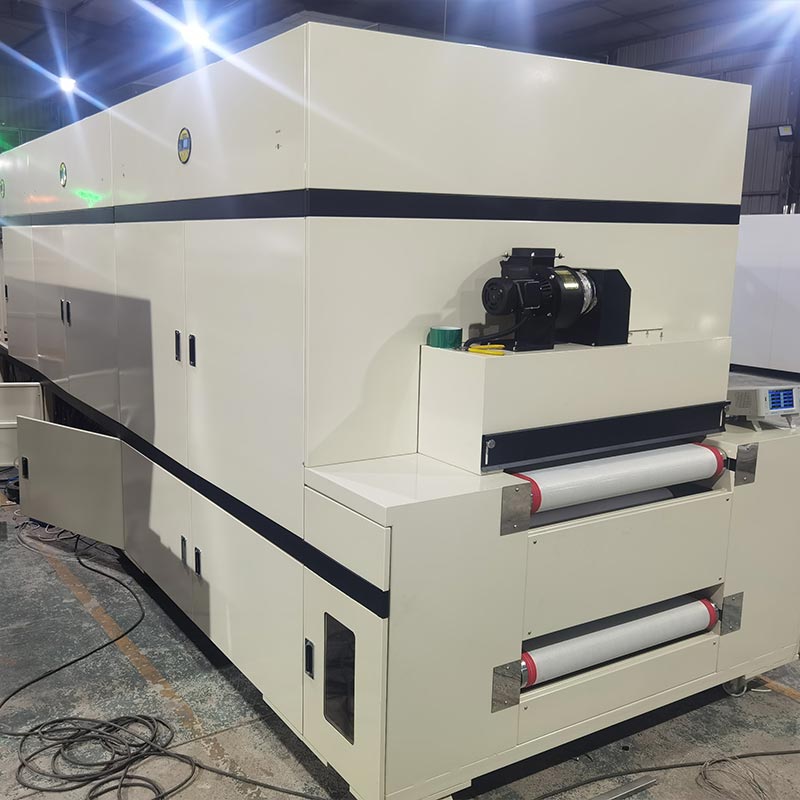

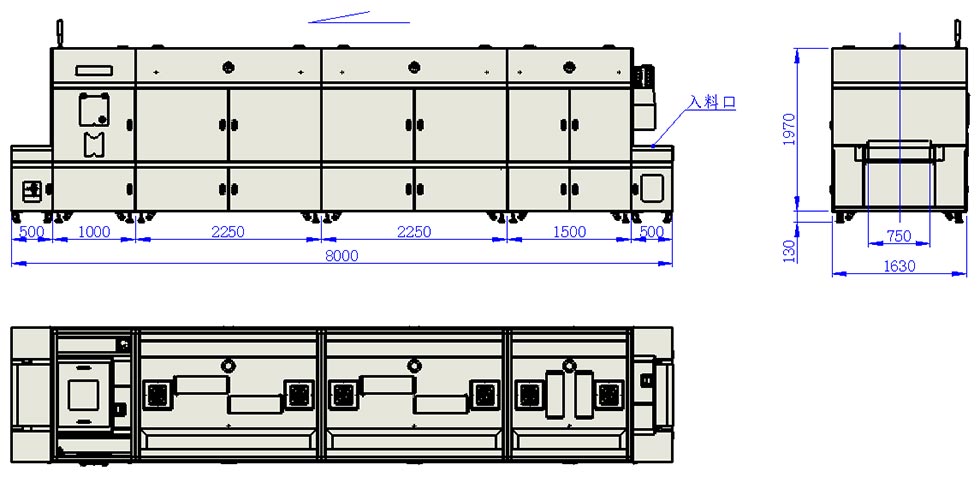

Customers can customize the drawings based on their actual requirements.The 8m Class 100 Tunnel Oven strictly complies with the 1000-level purification standards. All three sections of the temperature zones are independently and precisely controlled by Delta PLC combined with SCR thyristors, and are supplemented by far-infrared lamps to rapidly enhance the curing effect. The oven is equipped with a high-temperature efficient filter, and a Teflon high-temperature mesh belt is equipped with a device to prevent deviation and convenient self-cleaning sticky dust rollers. The cooling section uses a thousand-level laminar flow fan and a bottom forced exhaust fan to work together, discharging the hot air outdoors to achieve the best air cooling effect. Customers can customize the drawings based on their actual needs.

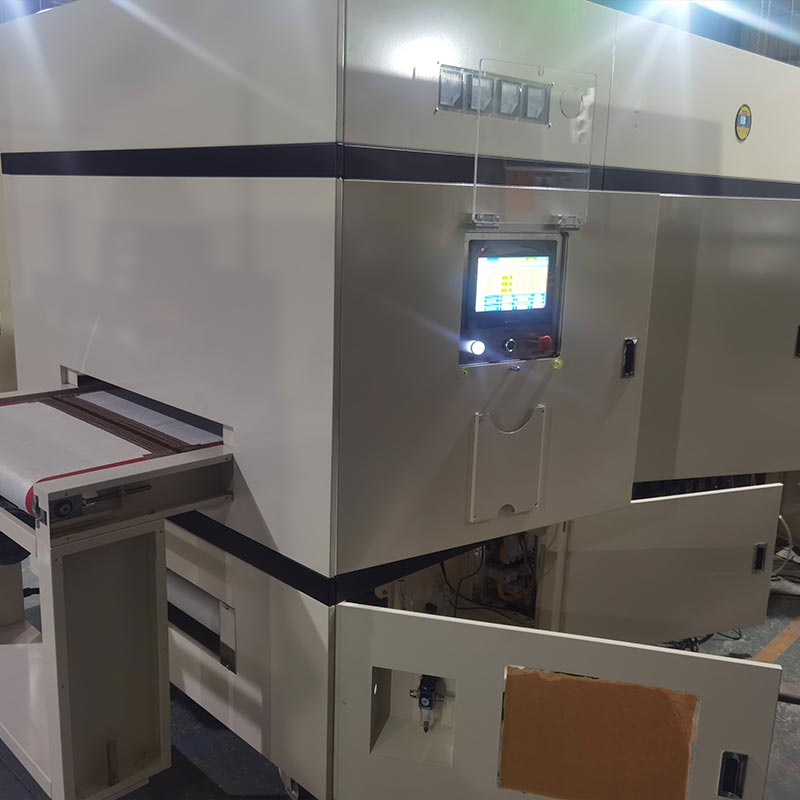

The control architecture of the Semiconductor Curing Furnace is supported by Inovance H5U PLC and Weinview MT8102iE touch screen, providing industrial 4.0 interfaces for MES data collection and automatic scanning functions. The system is composed of Schneider AC contactors and Omron relays, housed in a dustproof enclosure. This selection of high-quality components, combined with the Schininger inverter, ensures that the 700 mm wide Teflon mesh belt maintains a smooth and undisturbed speed of 0.5 to 3 meters per minute, protecting your precision wafers and PCBA from vibration or mechanical shock.
