Electric Heating Tunnel Oven

In China, Dingfeng Electric Heating Tunnel Oven provides a linear heating curve by precisely regulating the current, thus avoiding thermal shock to sensitive electronic components. The built-in 9-inch stainless steel volute fan and custom airflow guiding device also provide strong support for it, enabling this system to maximize the utilization of thermal energy and making it one of the most energy-efficient tunnel drying machines among similar products.

Manufacturing process

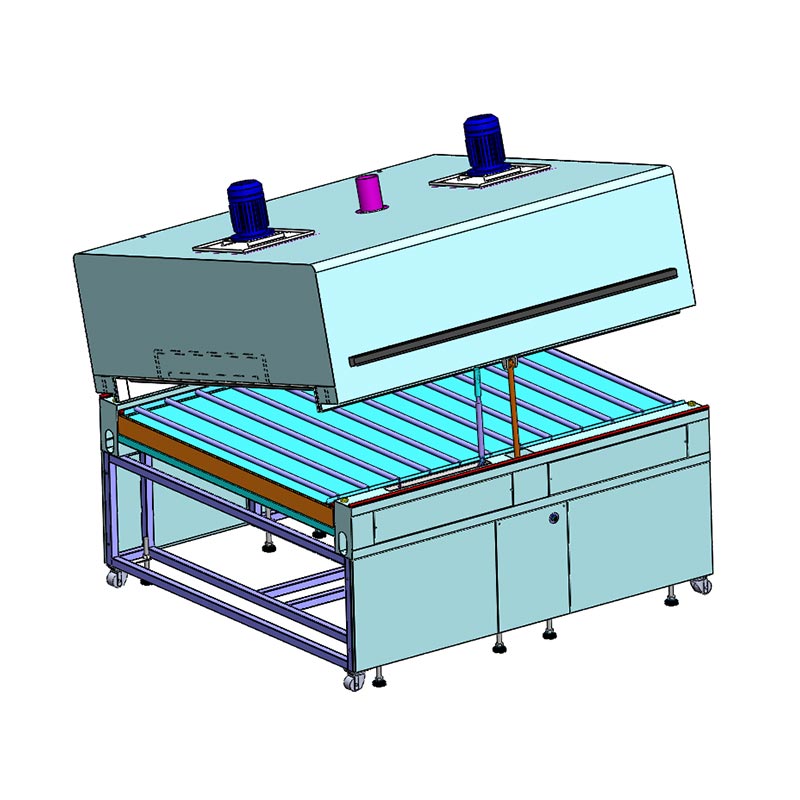

The Electric Heating Tunnel Oven boasts extremely high safety and ease of maintenance. The shell is made of laser-cut, hydraulically formed cold-rolled steel, and its surface is coated with a high-purity white powder coating. The interior is made of mirror-finish stainless steel and 120K aluminum silicate insulation material. It is equipped with an electric push rod oven cover. With a lifting force of up to 6000 Newtons, the opening angle of the oven cover can reach over 20 degrees. It also features hardened nickel-plated safety support rods and an electronic mechanical interlock system, ensuring a cool external touch and a clean internal environment, meeting the standard curing requirements.

Main technical parameters

Equipment energy consumption meter

Application

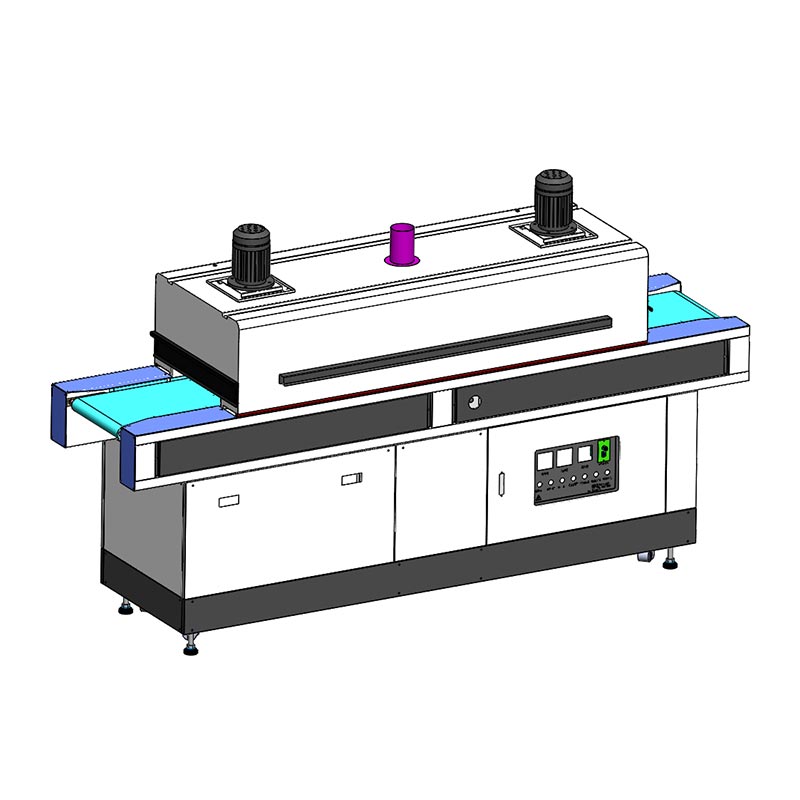

The Electric Heating Tunnel Oven adopts a modular three-stage design. The high-strength stainless steel mesh conveyor belt is driven by a variable-frequency motor. Whether your factory focuses on screen printing, shrink packaging, or electronic component baking, it can achieve stepless speed adjustment to match your precise production cycle time. For industries requiring high-purity results, the internal argon arc full-welding process ensures airtightness and cleanliness. The multi-functional system fills the gap between rapid drying packaging lines and high-precision electronic curing, providing a workflow that requires no intervention after setup, thereby increasing your daily output.

Frequently Asked Questions

Q1: How do I know if IR heating is better for my silk-screened products than hot air?

A: If your ink is thick or has high solvent content, standard hot air may cause a "crust" to form on top, trapping wet ink underneath. IR heating is superior because it excites the molecules of the ink and substrate directly, ensuring a uniform, deep cure that dramatically improves scratch resistance and color density.

Q2: What is the maintenance interval for the 6000N electric lifting system?

A: Our 6000N heavy-duty cylinders are designed for long-term industrial cycles with minimal maintenance. We recommend a simple inspection of the hardened nickel-plated support rods and a pivot lubrication check every 6 months to ensure the "Safety Interlock" remains in peak condition.

Q3: Can the IR lamps be replaced individually without stopping the entire line for hours?

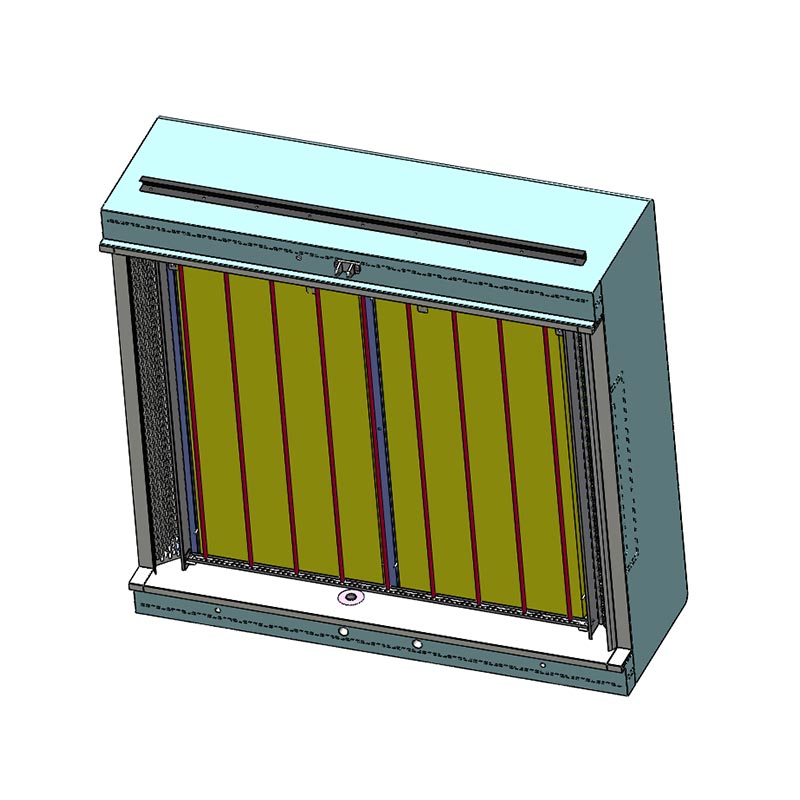

A: Yes. Dingfeng Tunnel Oven adopts a modular lamp holder design. Thanks to the side-opening electric cover plate, technicians can safely enter the heating area and replace individual bulbs within a few minutes, ensuring that the production process is not disrupted.
