How Dingfeng's Redefines Industrial Nitrogen Ovens with ±3°C Uniformity

Industry Context: Oxygen-Free Baking Becomes a Must-Have for Precision Manufacturing

    As semiconductor packaging, high-reliability electronic components, and new energy materials continue to advance, the demand for oxygen-free (N₂-protected) baking environments has escalated from a niche requirement to a process-critical necessity. In traditional high-temperature ovens, ambient oxygen readily causes product oxidation, material degradation, and in some cases, safety hazards. The industry urgently needs a professional-grade baking solution that combines high-precision temperature control, reliable nitrogen protection, and intelligent automation in a single platform.

    Industry Insight: Across 5G communication modules, automotive-grade ICs, and high-end MLCC capacitor manufacturing, nitrogen-protected baking has transitioned from "optional" to "mandatory." Maintaining oxygen levels below 100 ppm directly determines yield rates and long-term product reliability.

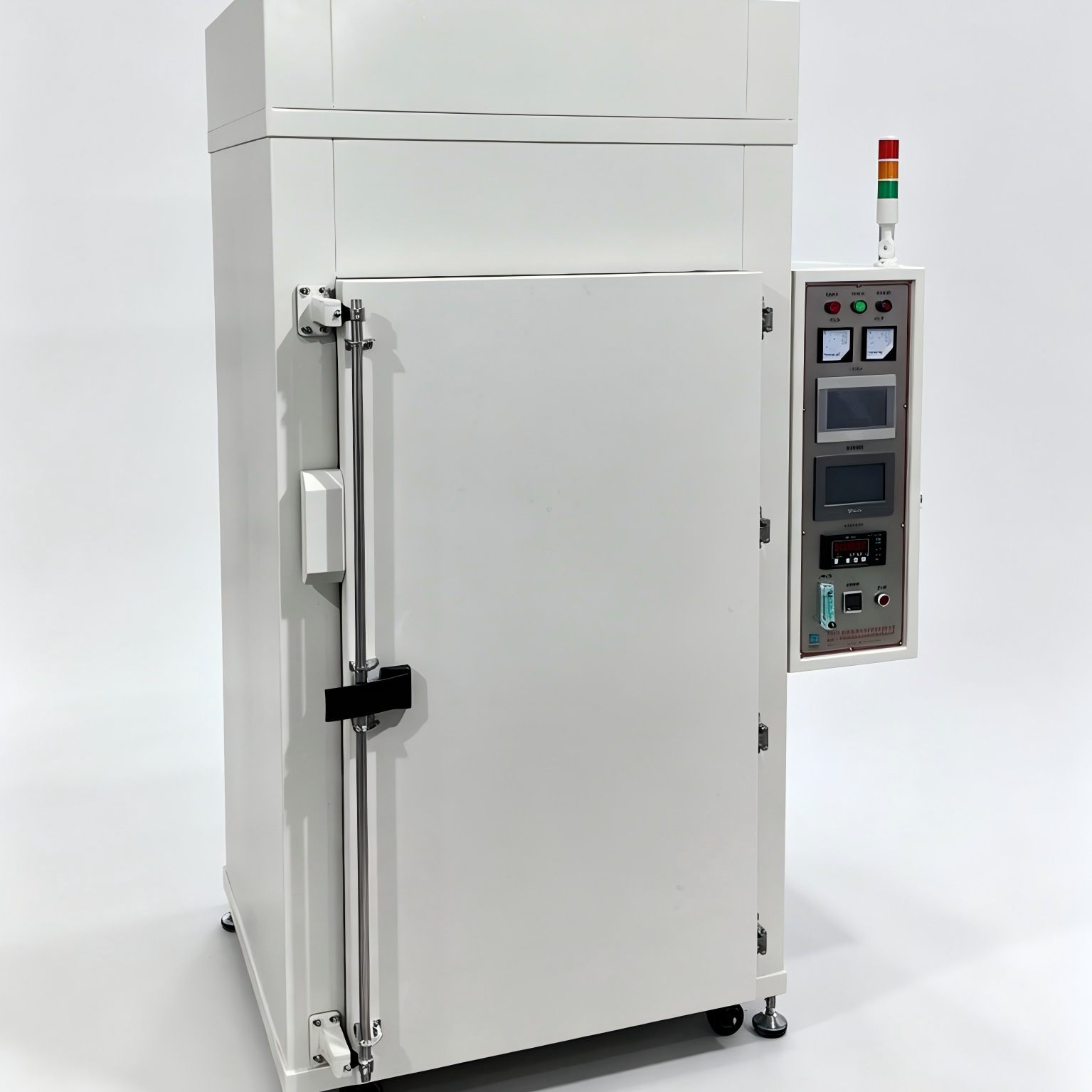

    Drawing on years of expertise in forced-air convection baking equipment, Dingfeng Industrial has officially released the DF-KX8085150N Vertical Nitrogen Oven—a professional-grade oxygen-free baking solution engineered for high-end precision manufacturing.

Key Highlight #1: Online O₂ Analysis + Closed-Loop Nitrogen Control

    The DF-KX8085150N is equipped with an online oxygen analyzer that continuously monitors the O₂ concentration inside the baking chamber, with a measurement range down to 100 ppm. The system uses real-time readings to drive a closed-loop nitrogen flow controller:

• Real-Time Online Monitoring: The inline oxygen analyzer continuously reads chamber O₂ levels—no manual sampling required
• Intelligent N₂ Regulation: The nitrogen flow controller automatically adjusts intake volume based on O₂ concentration data, ensuring the chamber remains at the target oxygen-free level
• Program-Controlled Exhaust: Equipped with a 3-inch automatic exhaust damper, programmatically synchronized with the intake system
• Reduced N₂ Consumption: Precise closed-loop regulation avoids excessive nitrogen purging, lowering operational costs

💡 Technical Value

    For processes requiring strict oxygen-free conditions—such as silver paste sintering, die-attach curing, and sensitive material heat treatment—the online O₂ analysis system is the linchpin for achieving process stability and batch-to-batch consistency.

Key Highlight #2: ±3°C Temperature Uniformity, 95% Thermal Efficiency

    Temperature uniformity is the cornerstone metric for industrial oven performance. The DF-KX8085150N achieves ±3°C temperature uniformity (tested under no-load conditions after 10 minutes of thermal stabilization) through multiple design innovations:

• Single-Side Horizontal Airflow: A 1.5 kW long-shaft motor drives a 12-inch multi-blade fan wheel, distributing hot air evenly across product surfaces via a specialized perforated baffle plate
• 100mm Insulation Layer: 120K aluminum silicate wool with 100mm thickness on all sides minimizes heat loss
• 95% Thermal Efficiency: Optimized duct design and high-efficiency heating system significantly reduce energy consumption
• Rapid Heat-Up: Ambient to 200°C in under 30 minutes, dramatically shortening production wait times
• SUS201 Mirror-Finish Stainless Steel Interior: 1.2T mirror-finish stainless steel—corrosion-resistant, easy to clean, with excellent thermal reflectance

Key Highlight #3: Intelligent Control System with Multi-Level Access & Recipe Storage

The DF-KX8085150N features a three-core intelligent control architecture—Weintek 7" HMI + Xinje PLC + Taisong programmable temperature control module—delivering an Industry 4.0-grade user experience:

• Multi-Level Access Control: Operator, process engineer, and administrator tiers ensure recipe parameter security
• Multiple Recipe Storage: Pre-configure and store multiple production recipes for one-touch recall, minimizing changeover downtime
• Automated Timer Control: Timer starts automatically once the setpoint is reached (0–999 min configurable); heating cuts off upon completion, followed by forced-air cooling (0–999 min configurable); the system auto-stops and triggers audible/visual alarms when the cooling cycle ends

Key Highlight #4: Comprehensive Safety Protection System

    In industrial baking, safety is non-negotiable. The DF-KX8085150N incorporates a five-tier safety protection architecture:

• Independent Over-Temperature Alarm: Dedicated temperature probe + automatic heater cut-off + audible/visual alarm upon anomaly detection
• Combustible Gas Detector: Real-time monitoring of flammable gas concentration with integrated alarm—critical for solvent-containing processes
• Electrical Safety Suite: Leakage protection, phase-sequence protection, overload protection, and earth-ground protection
• Explosion-Proof Door Latch: Kunlong-brand explosion-proof door buckle, rated for extreme operating conditions
• Thermally Isolated Control Cabinet: 20mm air gap between the control cabinet and oven body, with intake and exhaust cooling fans to extend electronics service life

Applications & Industry Value

    With its superior temperature control precision and reliable oxygen-free environment protection, the DF-KX8085150N vertical nitrogen oven is ideally suited for the following precision manufacturing scenarios:

• Semiconductor Packaging: Die-attach curing, silver paste sintering, underfill curing—oxygen-free environment ensures solder joint reliability
• Electronic Component Manufacturing: MLCC capacitor binder burn-out/sintering, resistor curing, sensor encapsulation—precision temperature control guarantees product consistency
• Optical Communication Devices: Optical module adhesive curing and burn-in testing, fiber connector curing—N₂ protection prevents oxidation and discoloration
• New Energy Materials: Lithium battery electrode drying, perovskite solar cell annealing, and emerging material applications
• Aerospace Components: Composite material curing, specialty coating curing—demanding both strict temperature control and oxygen-free conditions

About Dingfeng Industrial

Dingfeng Industrial is a high-tech enterprise specializing in the R&D and manufacturing of forced-air convection baking equipment. The company's product portfolio spans nitrogen ovens, tunnel ovens, vertical ovens, dual-station ovens, chain-plate dryers, and more, serving customers across the semiconductor, electronics manufacturing, automotive components, and advanced materials industries. Guided by the philosophy of "Pursuing Excellence, Serving the World," Dingfeng is committed to delivering high-quality, high-reliability industrial baking solutions to customers worldwide.

Media Contact: For more product information or to schedule an equipment demonstration, please contact the Dingfeng Industrial sales team.
