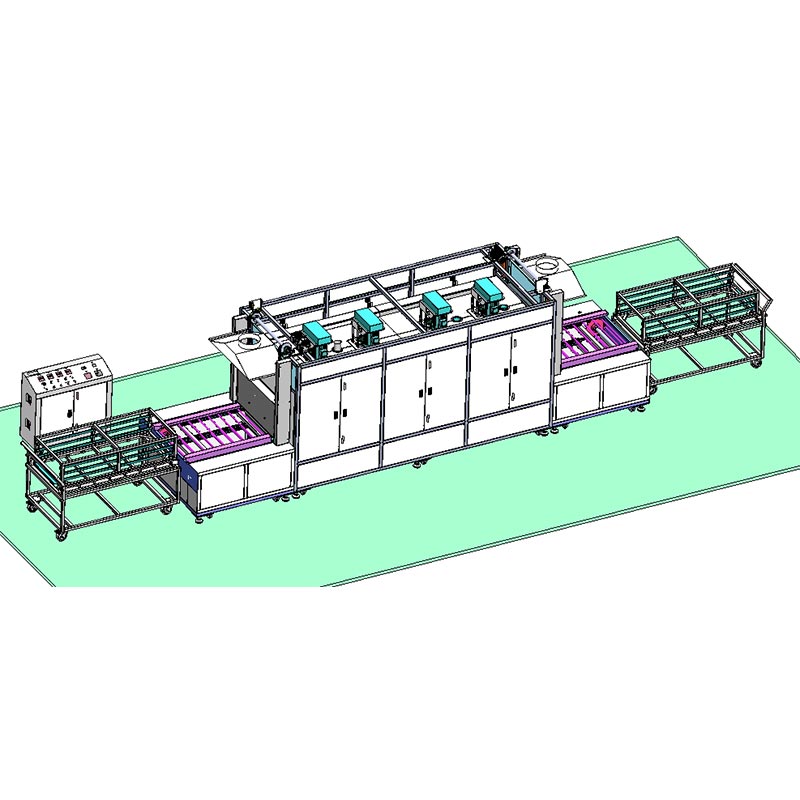

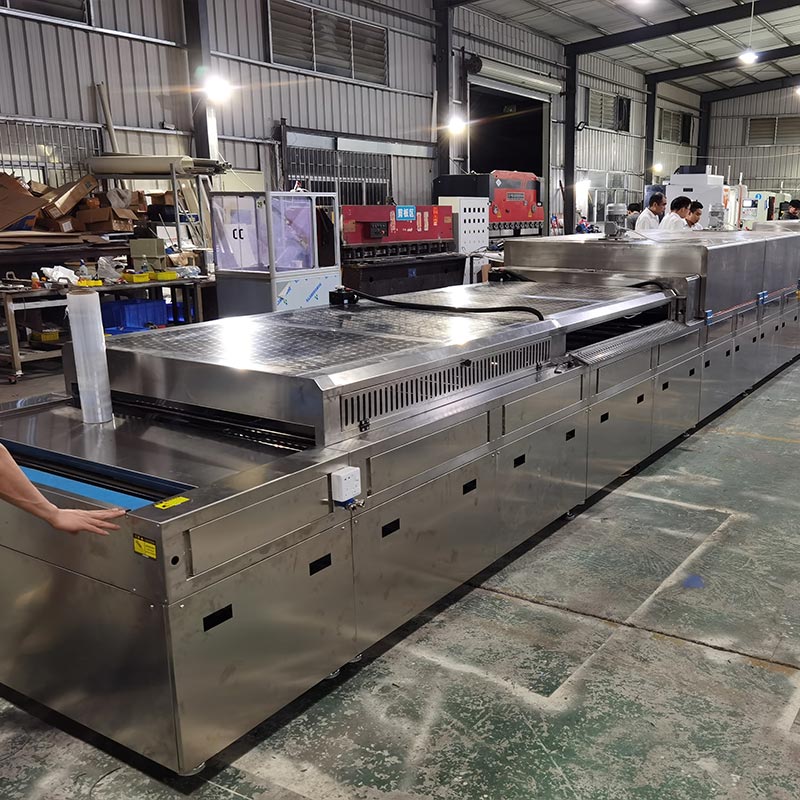

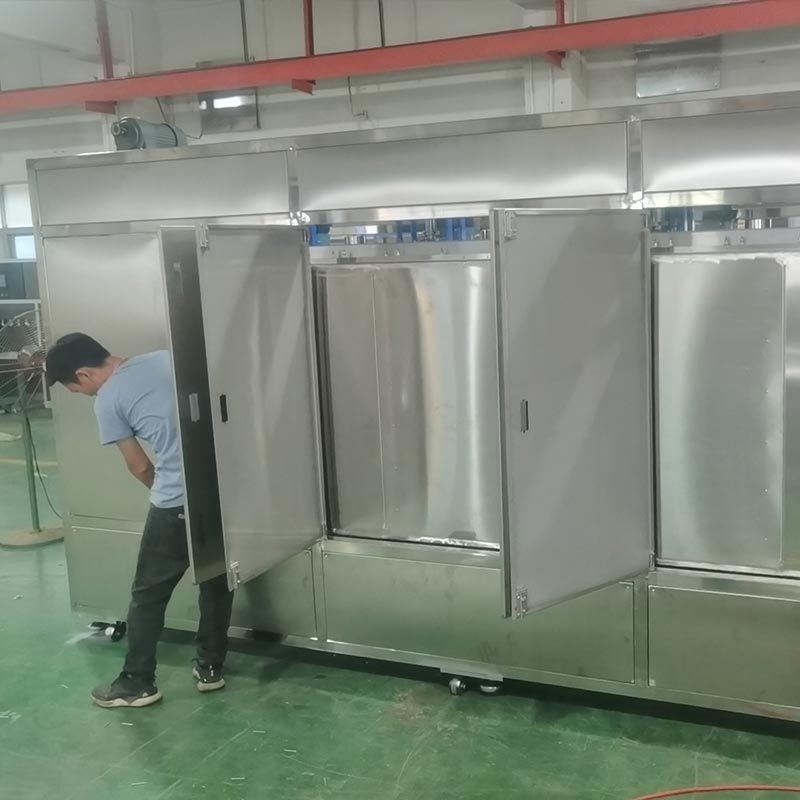

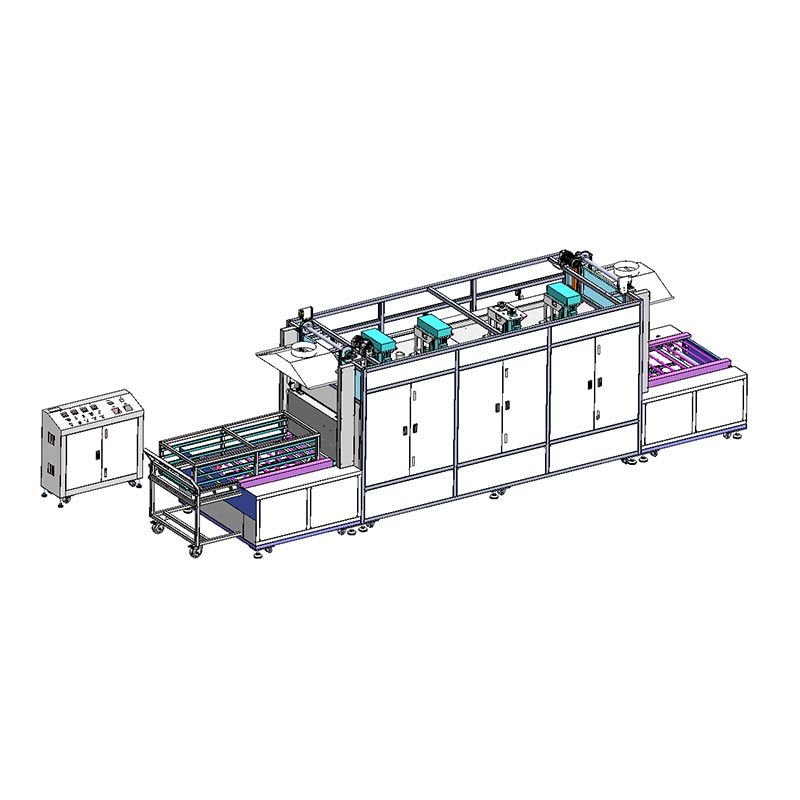

To rapidly heat from room temperature to 600°C within less than 60 minutes, not only a powerful drive is required, but also precise thermal management is necessary. Dingfeng's durable Industrial High-Temperature Anti-Corrosion Tunnel Oven meets the industrial needs of customers. It adopts 30 high-performance SUS316 heating elements and undergoes surface nitriding treatment, which extends the service life and prevents high-temperature oxidation. It is controlled by Taisong PID + SCR regulator and K-type sensor, with temperature fluctuations being only within ±0.5%. To protect your facility, the box is wrapped in 200-millimeter ultra-thick 120K aluminum silicate insulation material and sealed with 1300°C safety-grade ceramic fiber cloth to ensure that the shell can remain within the safe temperature range (≤ room temperature + 15°C) during peak operation periods.

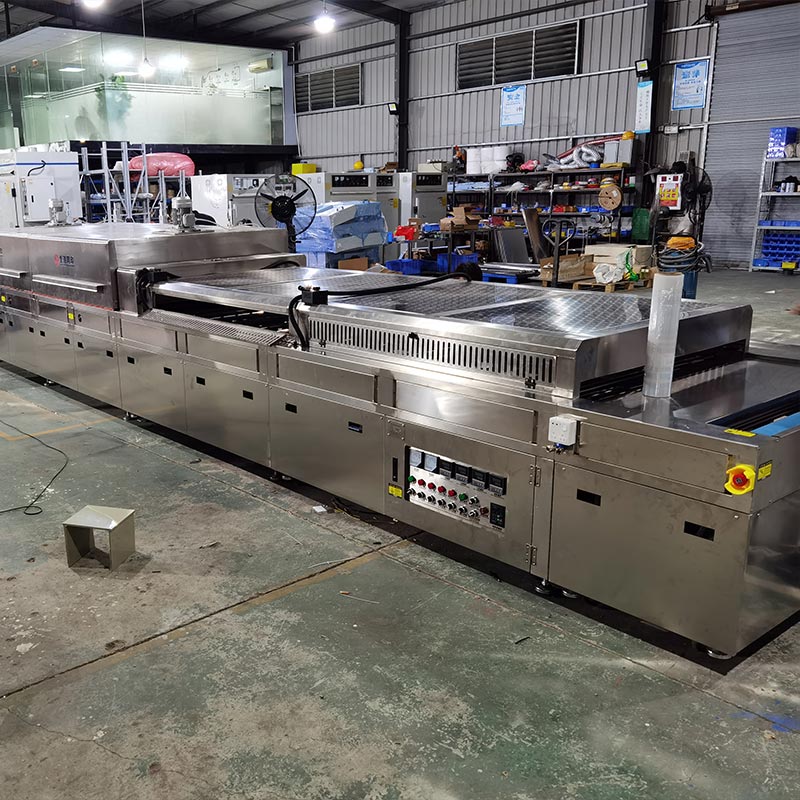

Industrial High-Temperature Anti-Corrosion Tunnel Ovens are designed specifically for high-temperature conductive coating baking processes. It features a horizontal airflow system driven by a Taiwan-made Sanya long-shaft motor. Hot air is evenly distributed across the 800mm width of the conveyor belt, equipped with heater dry-burn protection, mechanical pressure gauges for monitoring negative pressure, and a dual-layer overheat alarm system. 4-inch adjustable stainless steel valves are specifically designed to interface with your factory's acid exhaust system, ensuring the emission of volatile organic compounds (VOCs) without interfering with the environment required for a Class 1000 cleanroom.

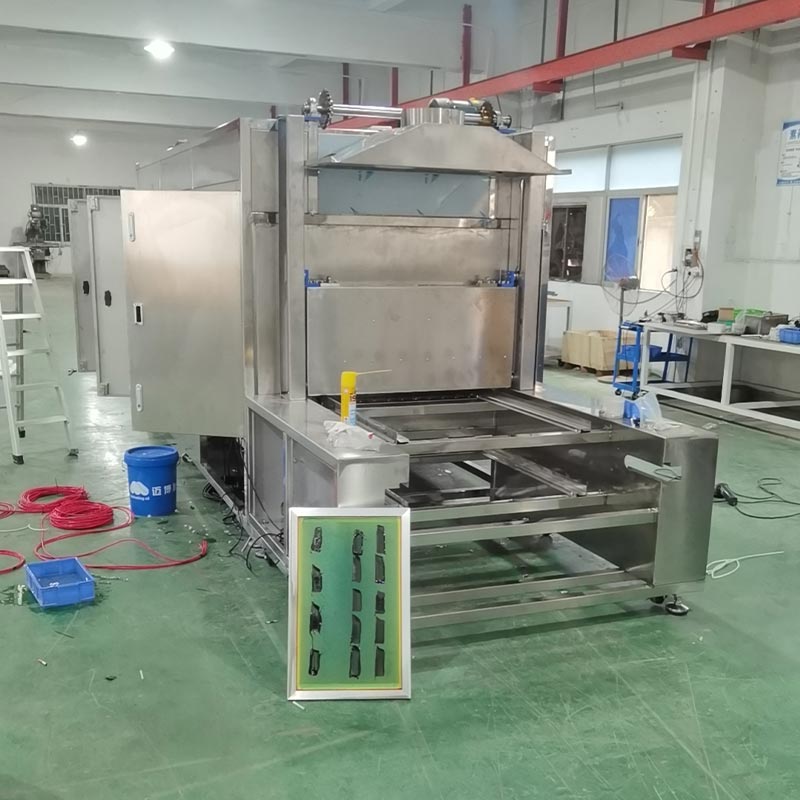

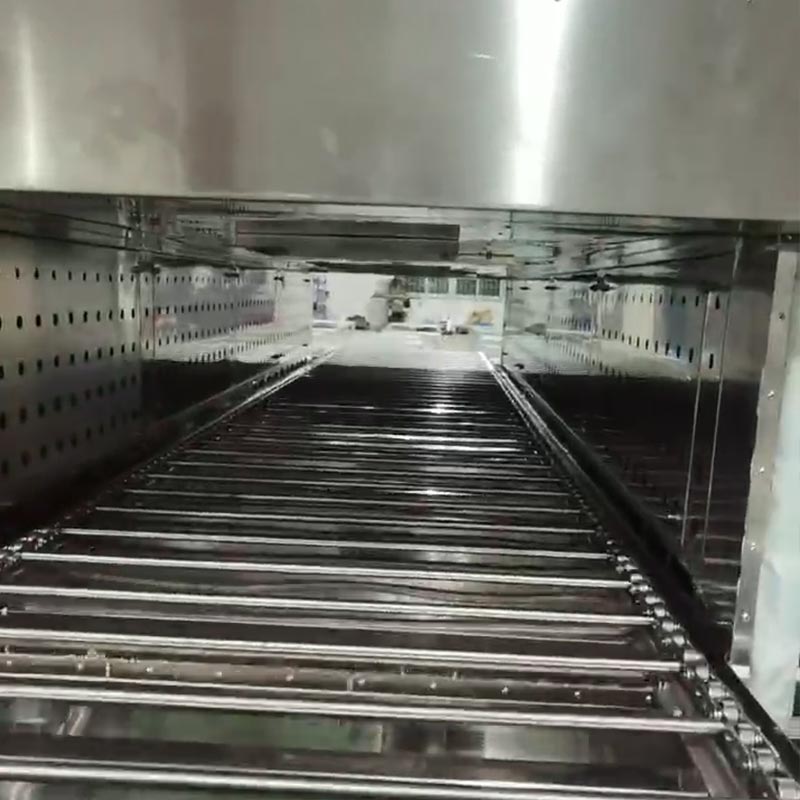

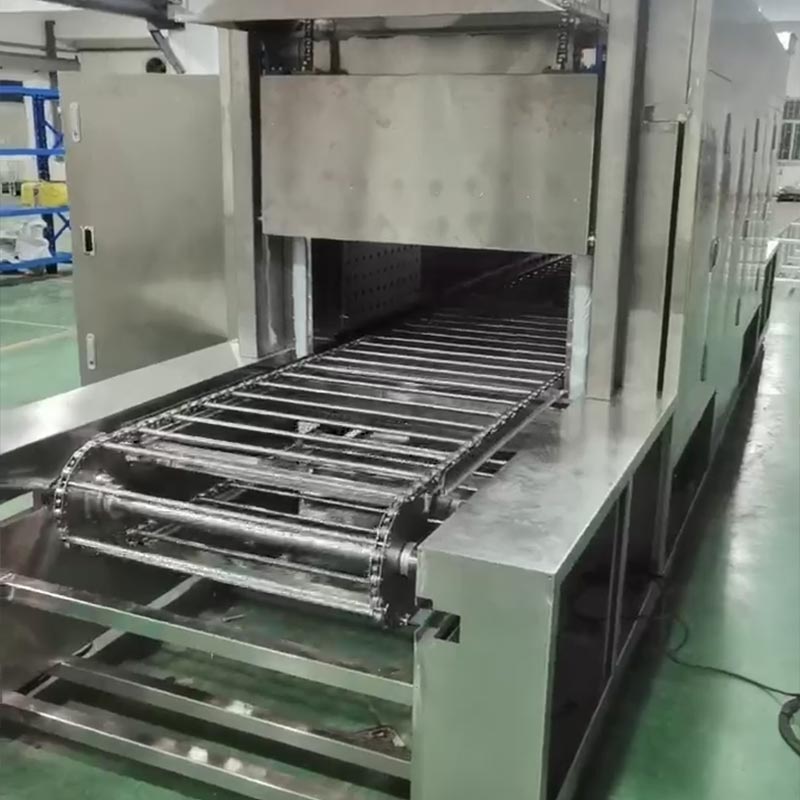

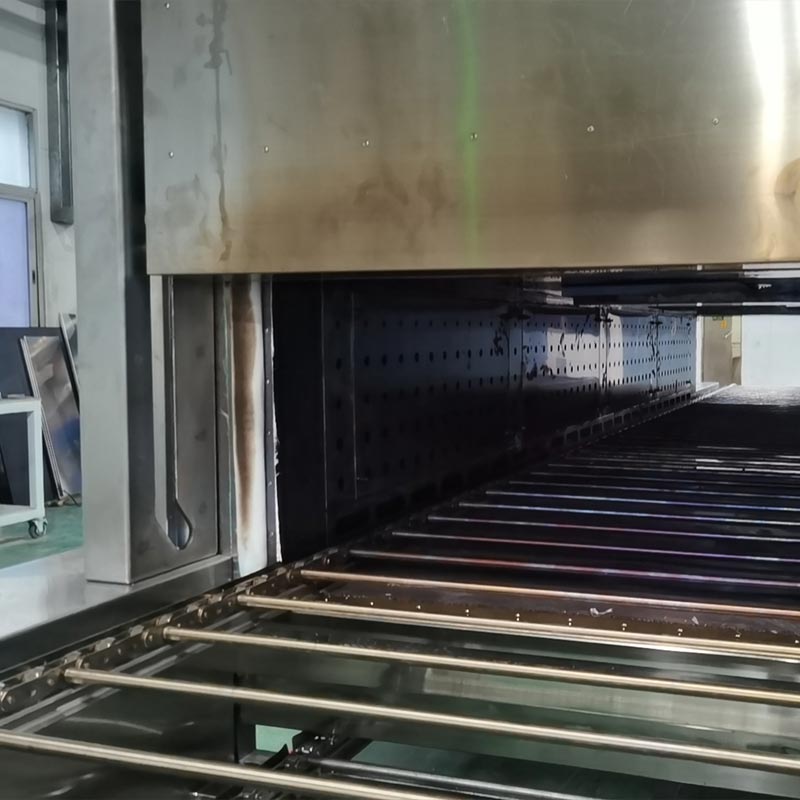

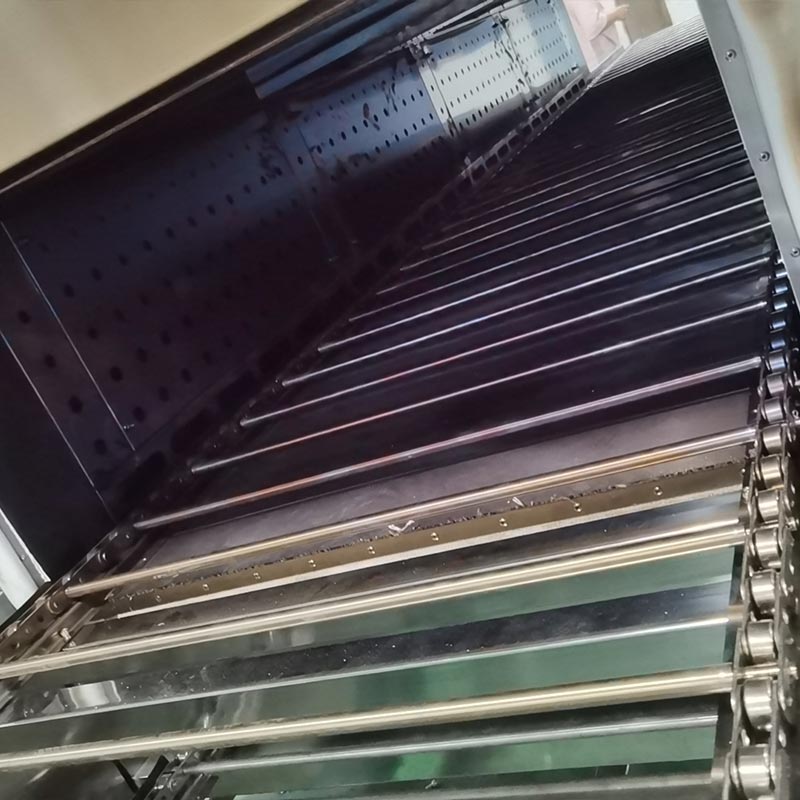

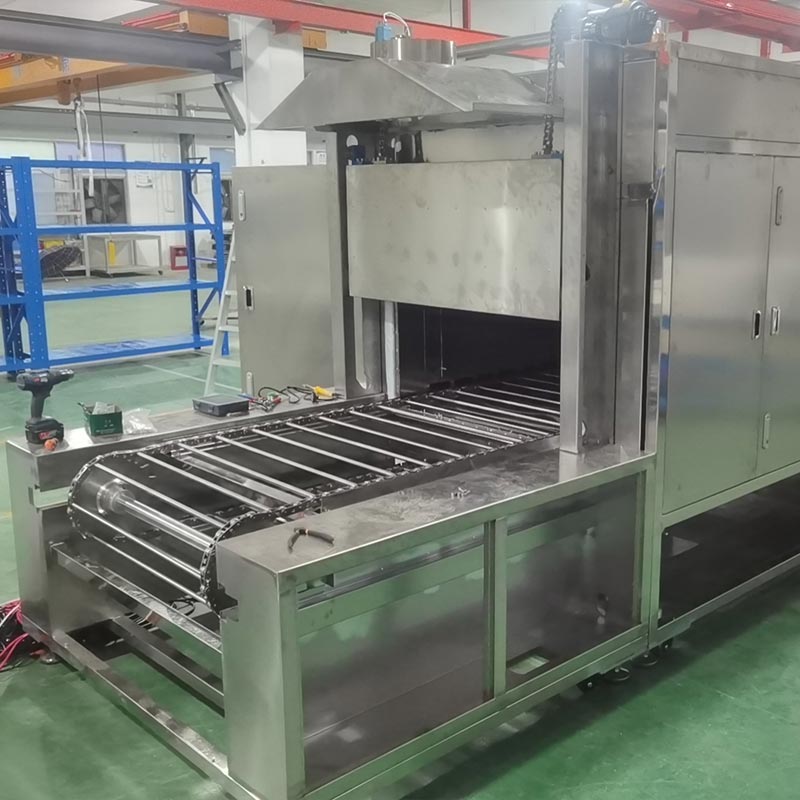

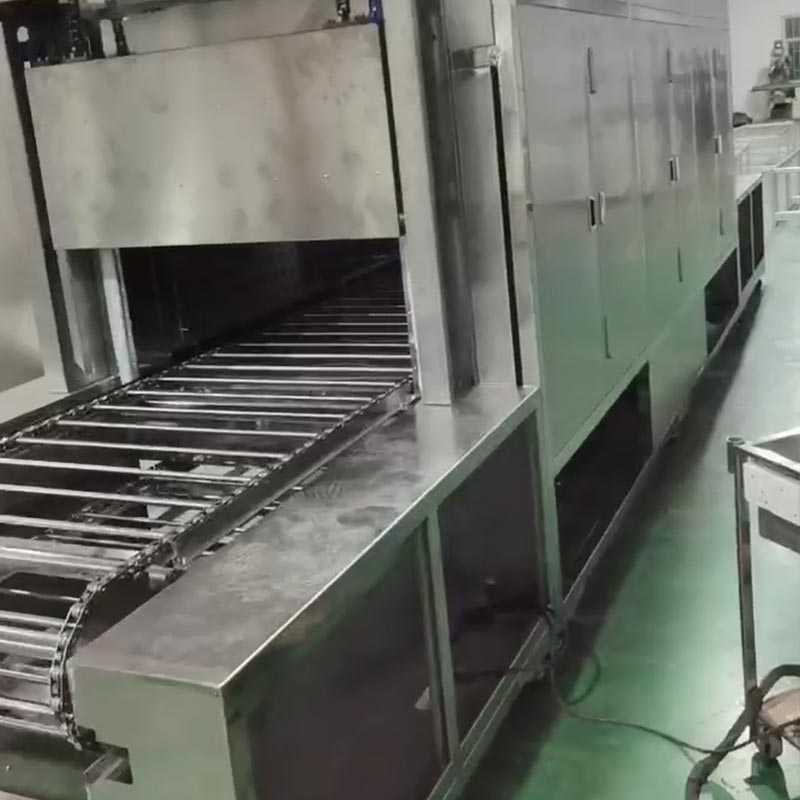

Factory efficiency depends on the speed of your loading and unloading. Our Conveyor Curing Furnace features an automatically braking geared motor-driven door system and a dedicated three-tier adjustable mother-and-child trolley system. This allows operators to prepare products on suspended racks and seamlessly transfer them from the 304 stainless steel chain conveyor belt to the trolley. This freestanding floor-standing control cabinet features a digital Industry 4.0 interface, enabling a programmable 999-hour timer and optional data logging for quality auditing. This ergonomic integrated design reduces the risks of manual operation and ensures your high-temperature sintering process is always the fastest link in the production line.

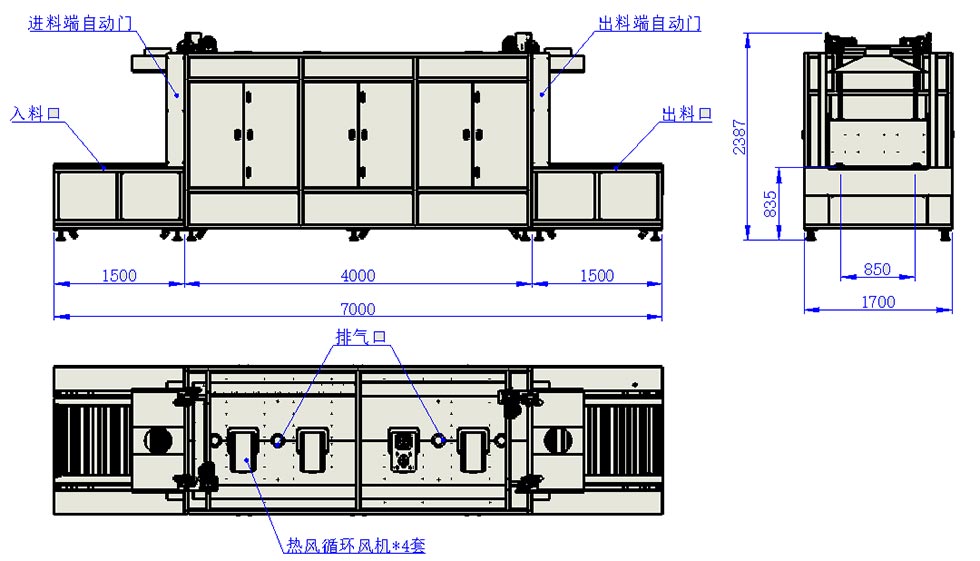

| No. | Item | Description |
| 1 | Power Supply | AC380V, 3Φ, 50Hz, 85KW |
| 2 | Dimensions | L7000D1700H2400mm |
| 3 | Temperature Control Range | Room temperature ~ 600°C adjustable |
| 4 | Cabinet Structure | Modular assembly structure |
| 5 | Effective Conveyor Width | 800mm |
| 6 | Effective Conveyor Height | 400mm |
| 7 | Conveyor Height from Ground | 830±30mm |
| 8 | Cabinet Material | Inner chamber: 2.0T SUS316 stainless steelAir guide plate: 1.5T SUS316 stainless steel perforated plateOuter panel: 1.5T SUS304 stainless steel |
| 9 | Cabinet Insulation | 120K aluminum silicate insulation wool, 200mm thickness around; air insulation layer in heating zones. Surface temperature ≤ ambient +15°C at max temp (excluding furnace mouth and exhaust). |
| 10 | Temperature Control | Thermostat + SCR, built-in PID auto calculation & auto-tuning; K-type thermocouple input (accuracy ±0.5%) |
| 11 | Hot Air Circulation | 2.2KW long-shaft motor with 12-inch SUS304 multi-blade fan; horizontal air supply (left outlet, right return). Air distributed via guide plate for uniform heating. |
| 12 | Exhaust | 4-inch adjustable stainless air valve with minimum safety limit; connected to factory acid exhaust system. |
| 13 | Heater | SUS316 stainless heating tubes with high-temperature nitriding treatment; 2.5KW each, 30 pcs total. Long service life, high efficiency, anti-oxidation, low energy consumption. Heating elements inside, terminals outside. |
| 14 | Heating Rate | RT to 600°C < 60 minutes |
| 15 | Safety Devices | Leakage, overload, over-temperature, and grounding protection |
| 16 | Temperature Uniformity | ±3% of set value (9-point test at constant temp, no load) |
| 17 | Over-temperature Alarm | Independent over-temperature system with separate probe; auto cut-off + audible/visual alarm on abnormality. |
| 18 | Timer Function | Timing starts when set temp is reached; heating cut-off and alarm upon completion. |
| 19 | Control Cabinet | Free-standing cabinet; 380V 3-phase 5-wire power; control circuit DC24V; wiring per code with labels and electrical schematic. |
| 20 | Sealing | High-temperature ceramic fiber cloth, max temp resistance 1300°C |
| 21 | Automatic Doors | Inlet/outlet doors driven by brake gear motor; auto close on entry, alarm on finish, manual open for discharge. |
| 22 | Rack & Trolley | 2 sets; master-subordinate trolley type, 3-layer adjustable; hanging type baking. |
| Category | Part Name | Specification/Model | Qty | Remarks |
| Spare Parts List | Switch Button | Same as equipment model | 2 pcs | Same model as used on machine |
| K-type Thermocouple | Same as equipment model | 1 pc | Same model as used on machine | |
| Stainless Steel Heating Tube | Same as equipment model | 3 pcs | Same model as used on machine | |
| Intermediate Relay | Same as equipment model | 2 pcs | Same model as used on machine |
Dingfeng's Industrial High-Temperature Anti-Corrosion Tunnel Oven offers a fully upgraded customized service model. Based on the actual needs proposed by the customer, we can rely on our professional after-sales maintenance system to tailor a suitable solution that matches the customer's specific requirements. Starting from the official acceptance and qualification date, the customer enjoys a 12-month free warranty period. During this period, we are responsible for free repair and maintenance. In case of any equipment quality issues, contact our problem-solving point. After the warranty period expires, there will still be lifetime maintenance and support. Only reasonable labor costs, transportation costs, and the cost of replacing parts will be charged to ensure the quick operation of the customer.
