The Secret To Zero Baking Defects: Dingfeng Releases Vertical Precision Oven

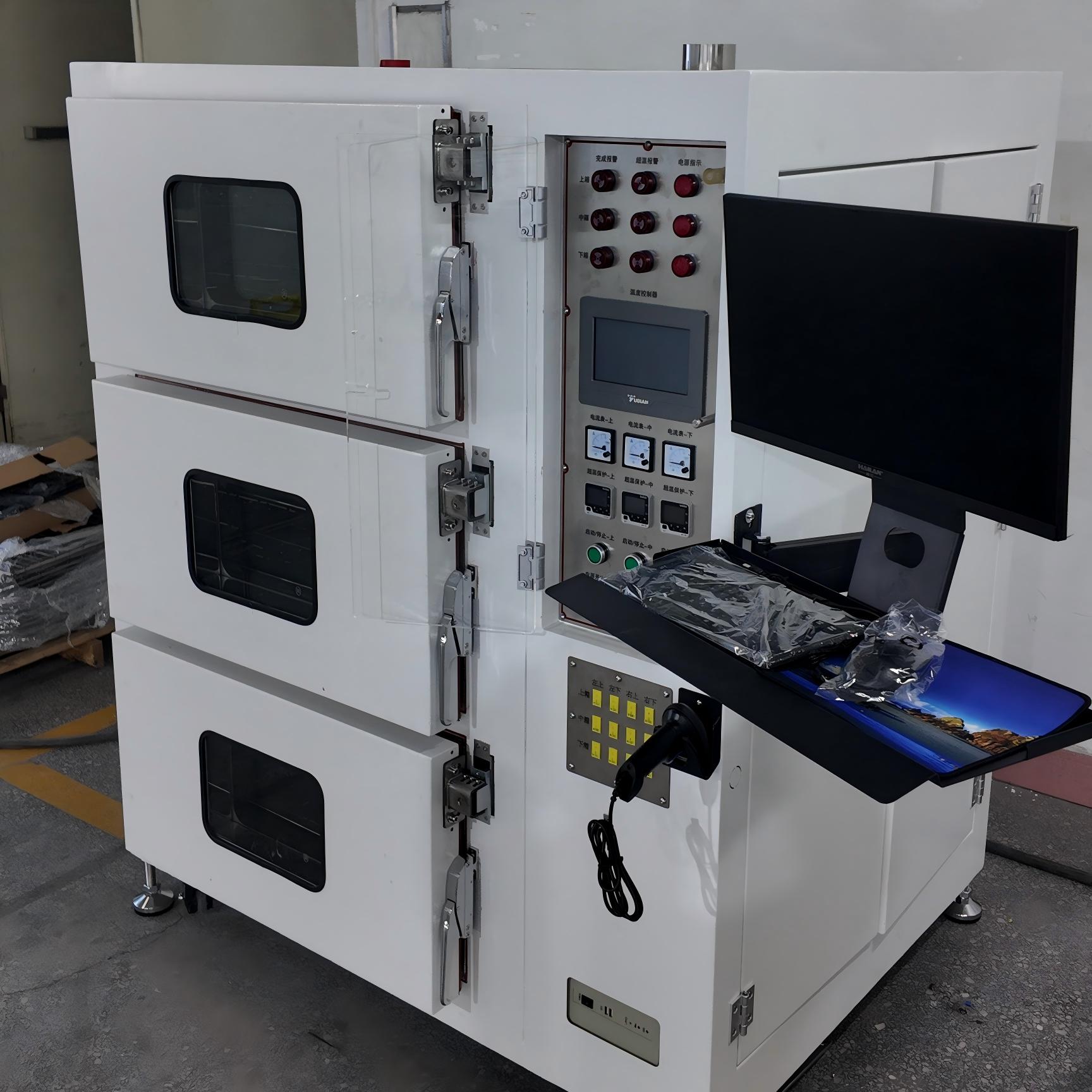

    Dongguan Dingfeng Automation has officially released the mass-produced DF-KX705035-3 vertical single-door 3-layer precision oven. Equipped with PID+SCR temperature control, barcode anti-misloading system and complete MES data transmission module, this industrial drying oven addresses three major pain points of precision manufacturing: inconsistent temperature distribution, missing production data traceability and insufficient safety protection. It delivers standardized intelligent high-temperature drying solutions for electronic, new material and precision hardware manufacturers worldwide.

    High-Precision Temperature Control & Uniform Air Circulation

    The DF-KX705035-3 oven supports adjustable temperature range from RT+20°C to 150°C, with temperature accuracy ±2°C and chamber temperature uniformity ±2% at no-load constant temperature. Adopting K-type high-precision thermocouple sensor, temperature display resolution reaches 0.1°C to meet strict drying standards for delicate components. A 120W long-shaft motor matched with a 7-inch multi-blade wind wheel drives horizontal circulating hot air, evenly distributed through SUS304 stainless steel perforated air guide plates. The oven is insulated with 120K aluminum silicate cotton (100mm thickness on all sides). Under maximum working temperature, the external surface temperature only rises ≤15°C above ambient temperature, cutting heat loss and energy consumption. It takes less than 20 minutes to heat up from room temperature to 150°C with a stable heating rate of 5–8°C/min, perfectly matching continuous mass production lines.

    Intelligent Upgrades: Barcode Anti-Mistake & MES Data Integration

    This 3-layer oven integrates a full-process intelligent traceability system, a core competitive advantage over traditional drying equipment:

    1. Standard barcode scanner: Products must be scanned and placed into matched chambers before baking starts, effectively preventing mixing and wrong-layer defective products;

    2. Built-in i5 industrial control computer with 21-inch Philips monitor, real-time display of temperature curves, operation status and timing parameters;

    3. Automatically collect full-process temperature and equipment operation logs, transmit data to factory MES system in real time, realizing full-lifecycle traceability for baking procedures, compliant with digital smart workshop standards.

    Multi-Layer Safety Interlock Protection System

    A complete safety interlock mechanism eliminates high-temperature operation risks:

    1. Dual over-temperature protection: Program control + independent mechanical thermostat, auto power cut and audible & visual alarm once abnormal temperature detected;

    2. Interlock control between heater and circulation fan to prevent dry burning; electromagnetic tight-locking door stays locked during baking and unlocks automatically after cycle completion;

    3. Comprehensive protection including leakage, phase sequence, overload and earthing protection, with 3-color indicator light plus buzzer for clear fault reminder;

    4. SUS304 stainless steel inner chamber and heating tubes resist high-temperature oxidation; high-temperature silicone rubber sealing strip withstands up to 250°C.

    Chamber Structure & Practical Standard Configurations

    · Inner dimension: W700D500H350mm, three independent chambers, 2 racks per layer, max load 10KG per single tray;

    · Outer frame: 2.0T cold rolled steel with baking finish, equipped with heavy-duty casters for easy relocation. Independent electric control box on the right side avoids heat transfer from oven to electrical components, extending service life;

    · 4-inch adjustable stainless steel air intake & exhaust valves with minimum opening limit, flexible for different drying process requirements;

    · External quick-plug temperature inspection ports on the back for regular furnace temperature calibration and record keeping.

    Installation & After-Sales Service Support

    Dingfeng Automation provides one-stop on-site service: 3 day for equipment moving and positioning, 30 days for complete machine & MES joint commissioning. The machine enjoys 12-month free warranty starting from formal acceptance. Core spare parts are stocked in factory warehouse for emergency delivery within 72 hours. If on-site troubleshooting is required after remote support fails, service engineers will arrive within 24 hours. Overseas customers are supported with remote debugging and cross-border spare parts delivery.
