Chain Plate Tunnel Oven

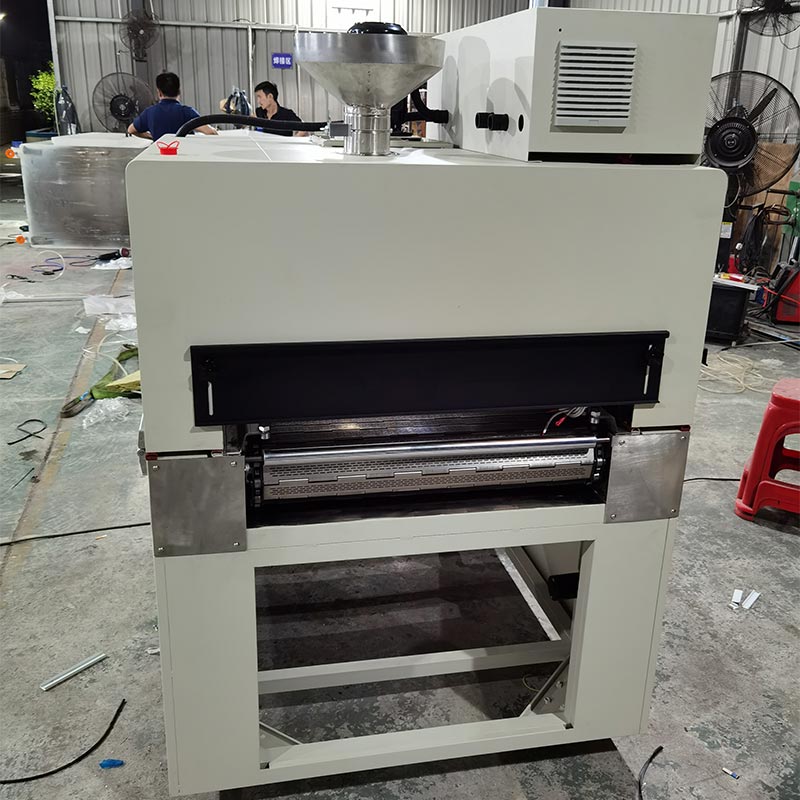

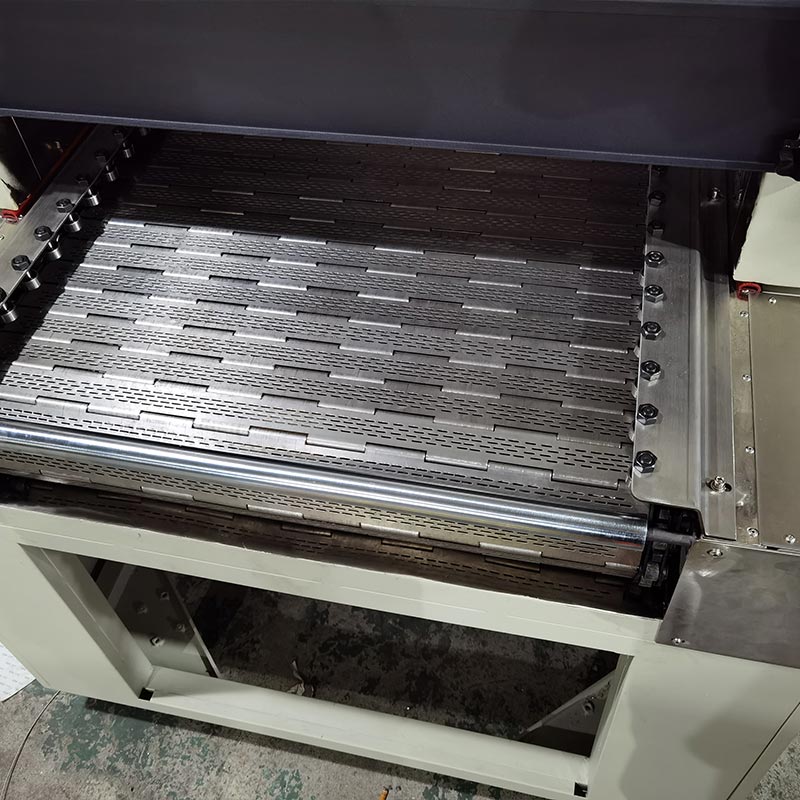

The Chain Plate Tunnel Oven manufactured by China Dingfeng features a unique structure transmission main beam. As a professional manufacturer, we use Schininger frequency converters and 0.2 kilowatt gear motors for drive. We have meticulously optimized every straight edge contact point of the SUS stainless steel plates. We installed full-length center support rollers beneath the 625-millimeter-wide plate, which ensures that your micro components can receive exactly the same heat dosage from the entrance to the exit.

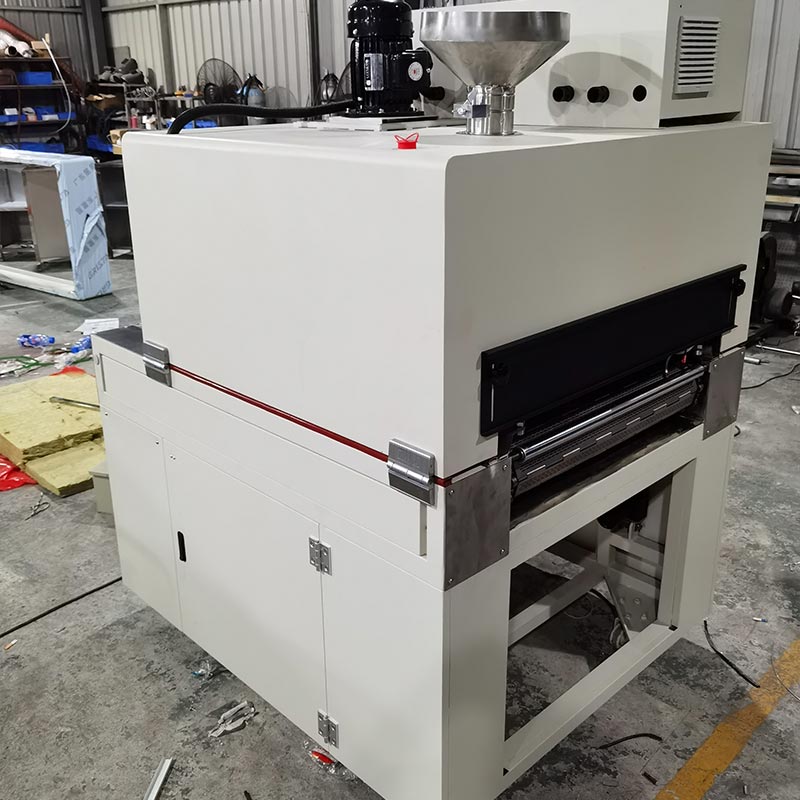

Manufacturing process

To achieve ±5°C temperature uniformity within a compact equipment, complex fluid dynamics technology is required. Dingfeng Chain Plate Tunnel Oven adopts a system combining its independently developed high-pressure casing with low-noise multi-blade impellers. This system pressurizes the heat generated by far-infrared (IR) lamps, allowing the downdraft airflow to pass through a specially designed porous distribution plate. The combined method of convection and pressure has been meticulously tuned and is suitable for electronic resins, preventing surface crust formation while ensuring deep curing of the internal adhesive. The entire process takes only 16 minutes.

Outstanding configuration

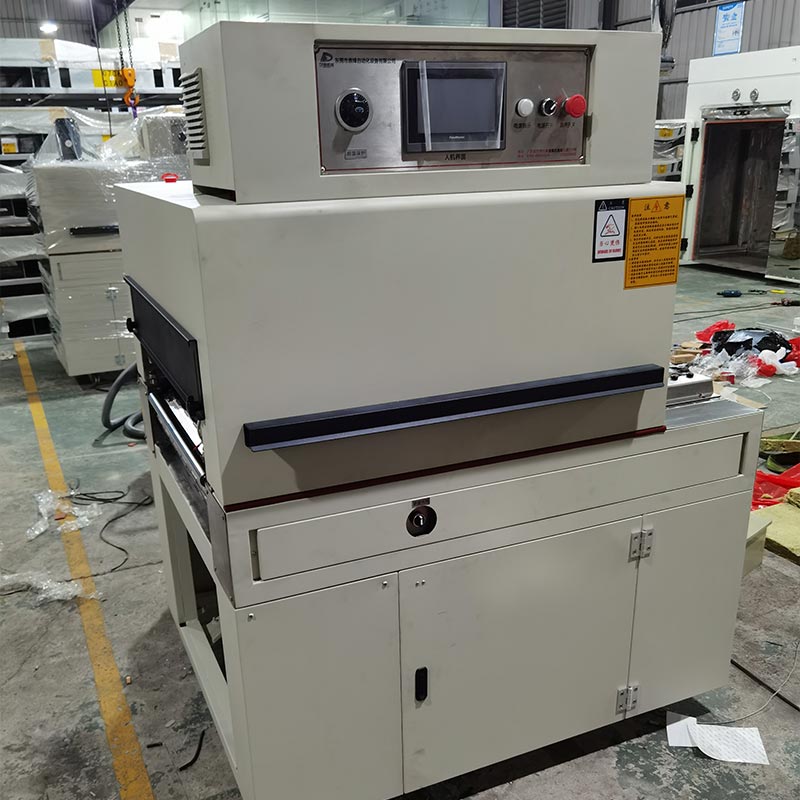

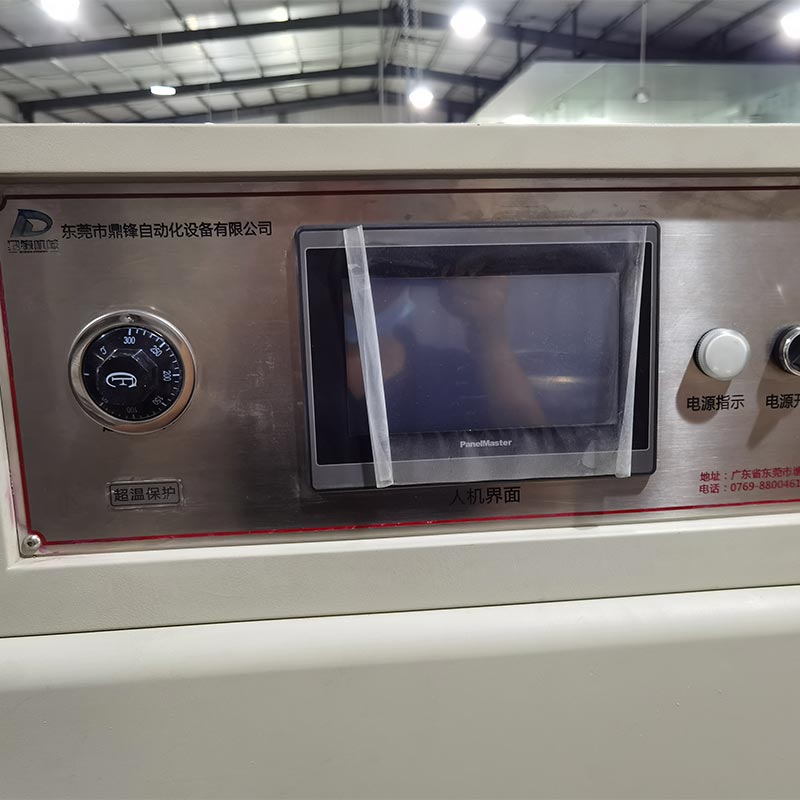

The trust in modern automated production lines is based on data and security. Our Chain Plate Tunnel Oven is equipped with a high-definition 10.2-inch human-machine interface (touch screen) and integrates network ports, supporting Industrial 4.0 connectivity. The PLC system includes pre-defined linkage points, enabling seamless master-slave control with your existing production line.

Triple interlock design

1. Electric push rod type cover with mechanical support rods.
2. CZ-93BPG02 type industrial safety switch on the control cabinet.
3. Heating cover locking device. If the cover is opened, the power will be automatically cut off to ensure that operators are fully protected during maintenance or inspection.Main technical parameters

Frequently Asked Questions

Q1: How does the "1.7mm/s Linear Speed" benefit e-cigarette pod manufacturing?

A: At this ultra-slow, stable speed, the Dingfeng Oven provides a consistent 16-minute "Soaking" time. This is critical for the slow-curing resins used in e-cigarette pods, as it allows the adhesive to settle and degas before reaching full hardness, eliminating microscopic air bubbles that cause leakage.

Q2: Can the conveyor width (625mm) be adjusted for different jig sizes?

A: Yes. The Chain Plate Tunnel Oven

features an adjustable guide rail system (±5mm) to accommodate various carrier widths. This flexibility, combined with our Bearing-Guided Intake, ensures that even if you switch product lines, the conveyor will handle your new jigs with the same "No-Jam" precision.

Q3: What makes your "Volute Fan" design better than standard axial fans?

A: Standard axial fans often create "swirling" air that can displace light electronic parts. Our Custom Volute Design creates a stable, pressurized "Plenum" , which translates into a vertical, non-turbulent air curtain. This provides the most uniform heat transfer while ensuring your micro-components stay exactly where they were placed on the chain plate.
