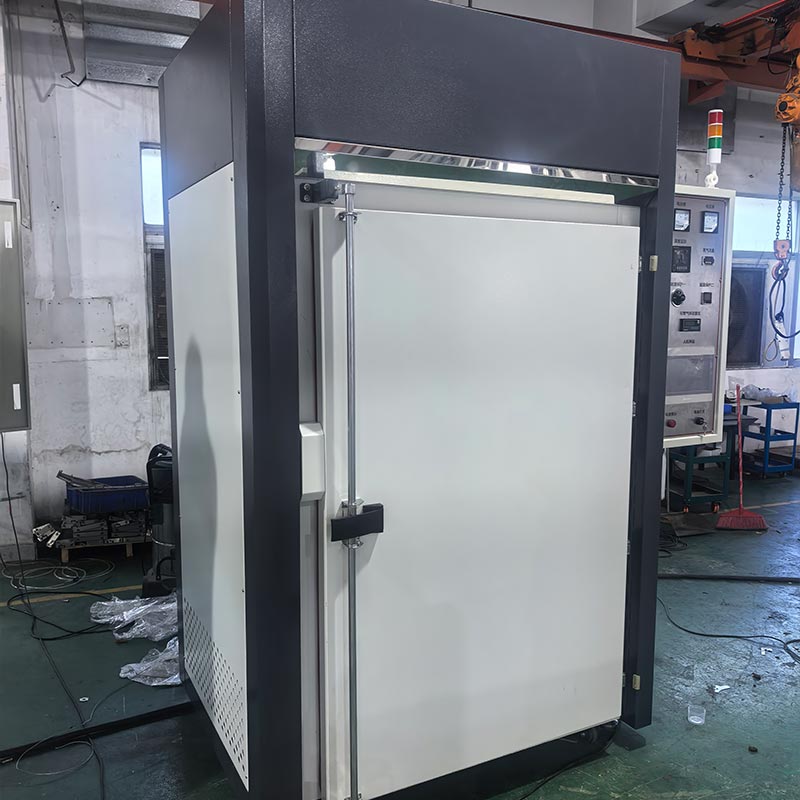

Precision Industrial Oven

In China, the Precision Industrial Oven developed by Dingfeng adopts a specialized multi-blade centrifugal hot air circulation system. It is made of stainless steel and is equipped with a powerful 16-kilowatt heating device, which can optimize heat reflection and prevent particle accumulation. Every component on both the top and bottom trays can receive the same heat energy, achieving perfect curing results.

Technical Specifications Table

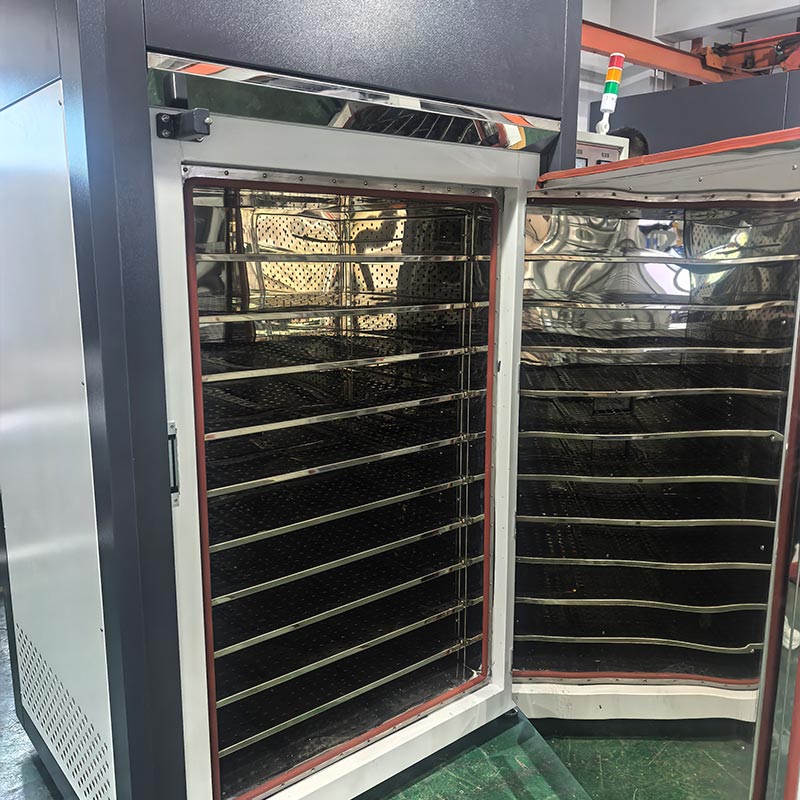

Built-in Structure

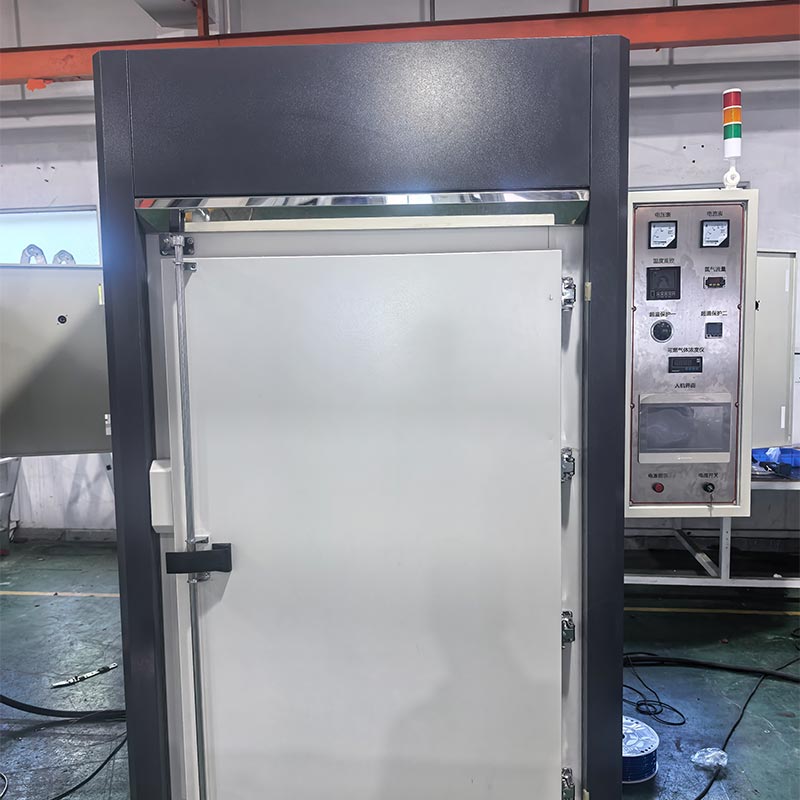

In today's data-driven manufacturing industry, Dingfeng's Precision Industrial Oven model is DF-KX8085150, which is equipped with an advanced PLC and a color touch screen control system that integrates a 999-hour timer. An additional option is a multi-channel paperless temperature recorder that can accurately record and export real-time temperature curves and historical data. It is equipped with a high-capacity stainless steel loading cart and tray, and is equipped with an electromagnetic interlock door lock. During operation, it forcibly locks the box door to completely eliminate the risks of operational errors and data interruption. It complies with the international ISO9001 quality system certification standards and provides comprehensive support for customers' production lines.

The Semiconductor Oven can fully meet the intensive production demands of the high-end manufacturing industry for integrated thermal processing equipment. In the PCB and semiconductor packaging processes, it is used to perform deep substrate dehumidification and secondary curing of integrated circuits, ensuring long-term solder joint reliability. For the micro-hardware and precision tool industries, it provides an ideal environment for precise stress relief and aging processes, enhancing the dimensional stability of components while avoiding surface oxidation or deformation. It enables seamless switching from rapid drying during frequent screen printing to the rigorous 24-hour continuous aging cycle on the same production line.

FAQ

What are the advantages of horizontal circulation air compared to vertical air flow?

Horizontal circulation air is mainly used in the baking of multi-layer tray-loaded items. The air flow evenly blows over the surface of each layer of materials from the side, and it will not cause insufficient temperature on the upper layer due to the obstruction of the lower layer materials. It is very suitable for the uniformity requirements of aging of electronic components and solidification of screen printing.

If my process requires detailed temperature rise curves to be recorded, does this equipment support it?

Yes. The standard version is a digital display instrument, but we also offer an optional paperless recorder. It is convenient to record and store temperature curve data for up to several months in real time, making it easy for you to conduct quality traceability and data analysis.

Does the total power of 16.5kW have special requirements for the workshop power grid?

The Precision Industrial Oven uses AC380V 50Hz three-phase five-wire power supply. Since the heating power is 16kW, we recommend that users reserve sufficient air switch capacity at the installation location and ensure good grounding to ensure safety.

Why choose stainless mirror plate as the inner liner instead of ordinary galvanized sheet?

Mirror stainless steel not only has a higher efficiency in reflecting heat, but more importantly, it has stable performance at high temperatures and will not release impurities or oxide scale, which is crucial for the curing of electronic components with environmental cleanliness requirements.
