Industrial Curing Oven

In China, the Durable Industrial Curing Oven model DF-KX291012 is specifically designed to achieve extremely high durability in a strongly acidic chemical environment. Other brands use standard coatings, while Dingfeng provides a 360° Teflon coating inside the cabinet, along with SUS316# grade heating elements, an SUS304 stainless steel shell, and a specially powder-coated surface to form a robust protective layer that resists external corrosion. It uses high-density 100 mm glass wool insulation material and has a total power of up to 42 kilowatts, ensuring precise temperature uniformity.

Intelligentization and data traceability technology

The Industrial Curing Oven supports the pre-storage of over ten different product baking process curves and enables one-click invocation. This fundamentally eliminates the risk of coating failure due to human error in setting parameters. The system can simultaneously record temperature curves at multiple points inside the furnace. The data can be exported via USB or seamlessly integrated with the MES system, ensuring that the process data of each batch of silicon wafers in the photovoltaic and semiconductor industries can be fully traced. In case of defective products, it can quickly determine whether the abnormal temperature zone of the oven is the cause, providing a solid basis for quality control.

Technical Specifications Table

Key Advantages

Precision is the core of advanced materials science. The DF-KX series is equipped with a color touchscreen and PLC control system, enabling intuitive management of complex baking procedures lasting up to 999 hours. For applications requiring a completely oxygen-free environment, we also offer an optional nitrogen (N2) protection system, which works in conjunction with the corrosion-resistant internal structure to eliminate oxidation and chemical side reactions. This makes our Corrosion-resistant Oven the preferred product in cleanroom research and semiconductor development fields, where even a speck of rust or a slight temperature fluctuation could ruin months of experimental data.

Advantageous Function

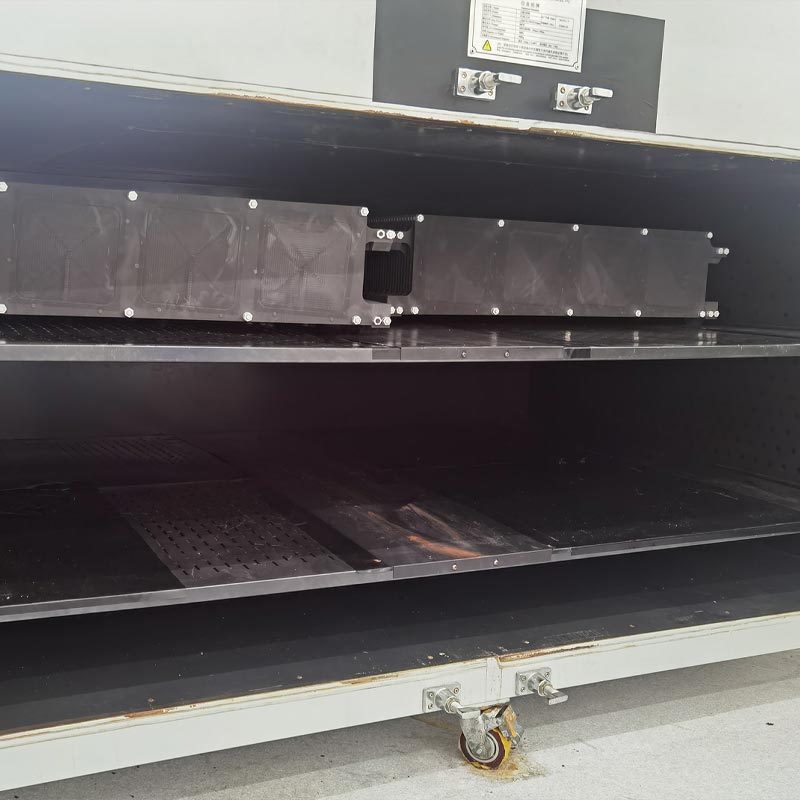

Our Industrial Curing Oven provides a controllable environment for the baking and anti-corrosion coating of graphite tray carriers in the photovoltaic industry, significantly extending their service life and preventing metal contamination of silicon wafers. By adopting a dual-sided horizontal hot air circulation system, we ensure that each tray, regardless of its position in a 200-kilogram load, can be processed under the same conditions, thereby reducing the batch nonconformance rate and maximizing your return on investment in the highly competitive renewable energy market.
