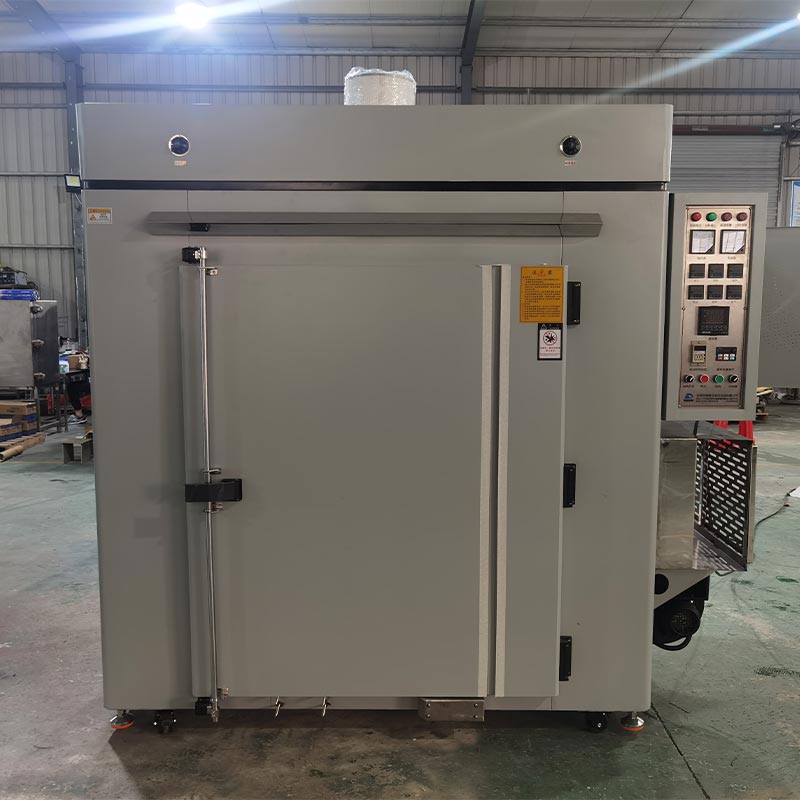

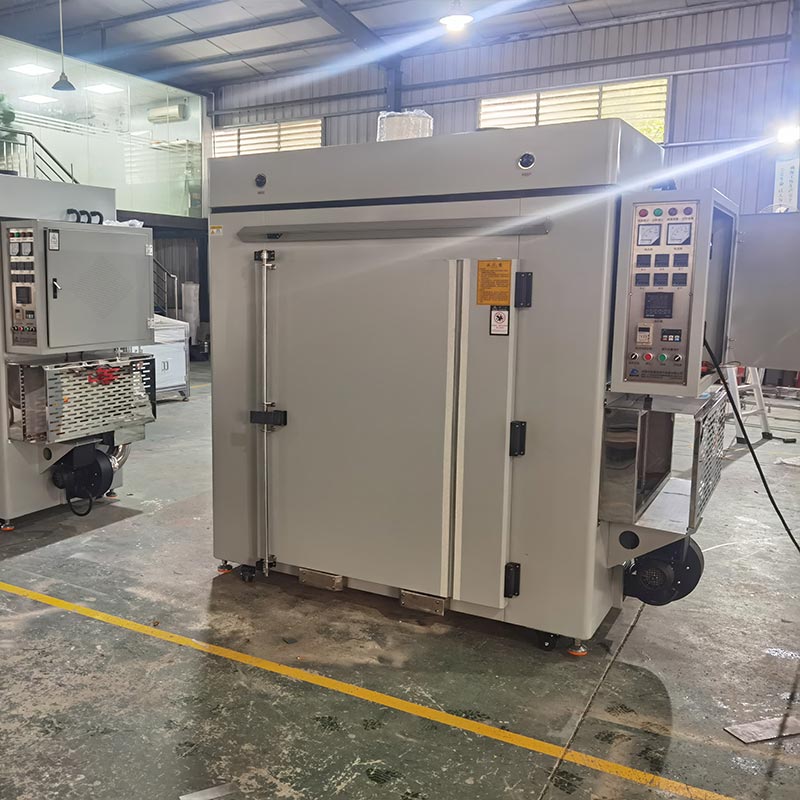

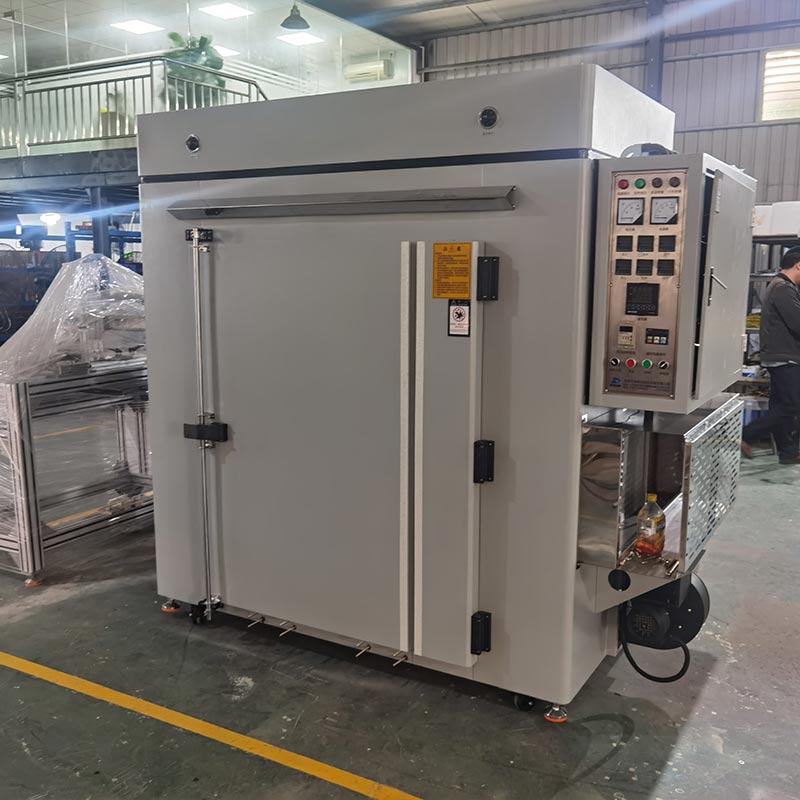

Industrial Screen Printing Oven

The Industrial Screen Printing Oven from Made in China is equipped with an in-built dust-free cleaning system. Dingfeng has designed high-temperature-resistant and efficient air filters and multi-blade centrifugal fans to create a continuous, sterile horizontal airflow. This ensures that every layer of the printed circuit board or hardware shell in screen printing can be processed in an environment without airborne particles. By combining this with the "SUS304 mirror-finish stainless steel" internal material (which can prevent particle shedding), we achieve a temperature uniformity of ≤±3°C, allowing the ink to dry quickly and evenly.

Technical Specifications Table

Built-in Configuration

Speed is crucial for large-scale printing operations. The Industrial Screen Printing Oven we manufacture has a fast heat recovery capability and is equipped with a powerful 16.5-kilowatt heating device. It takes only 20 minutes to heat from room temperature to 200 degrees Celsius. The PID intelligent control can maintain within ±0.5 degrees Celsius, avoiding problems such as ink discoloration or substrate brittleness caused by excessive baking. It can also support a load of 200 kilograms and is equipped with a programmable timer. From small-scale research prototypes to large-scale industrial printing batch production, it can be easily achieved with just one one-click operation.

Application Areas

This is not merely a dryer; we support the concept of customization. The Industrial Screen Printing Oven is a specialized curing equipment for advanced materials science. In the electronics industry, it is the preferred choice for precisely curing conductive ink on film switches and FPC boards. For precision hardware, the optional nitrogen (N2) protection system and oxygen analyzer can perform oxygen-free heat treatment, preventing metal components from oxidizing during the curing process. By using a multi-channel paperless recorder to monitor the thermal curve in real time, it is indispensable for factories that must provide data support for quality reports for aerospace or medical-grade printing.

Frequently Asked Questions Answered

Q1: How does the efficient air filter inside the PCB Curing Oven handle temperatures up to 200°C?

Answer: We use a special high-temperature-resistant efficient air filter with a ceramic frame and high-purity glass fiber medium. Unlike standard filters, these filters maintain structural integrity and filtration efficiency (100 grades) during the 200°C cycle, ensuring zero gas leakage.

Q2: Can it prevent ink fading (turning yellow)?

Answer: Yes. Ink fading is usually caused by high temperatures. Our PID intelligent system combined with single-sided horizontal airflow ensures that the temperature never exceeds the set value (stabilizing at ±0.5°C), thus protecting sensitive white or transparent ink from thermal degradation.

Q3: Is a nitrogen (N2) environment necessary for screen printing curing?

Answer: This depends on your ink type. For standard ink, a nitrogen environment is not required. However, for conductive silver or copper inks used in electronics, a nitrogen shielding environment can prevent conductive particles from oxidizing, thereby maintaining the conductivity of the printed circuit.
